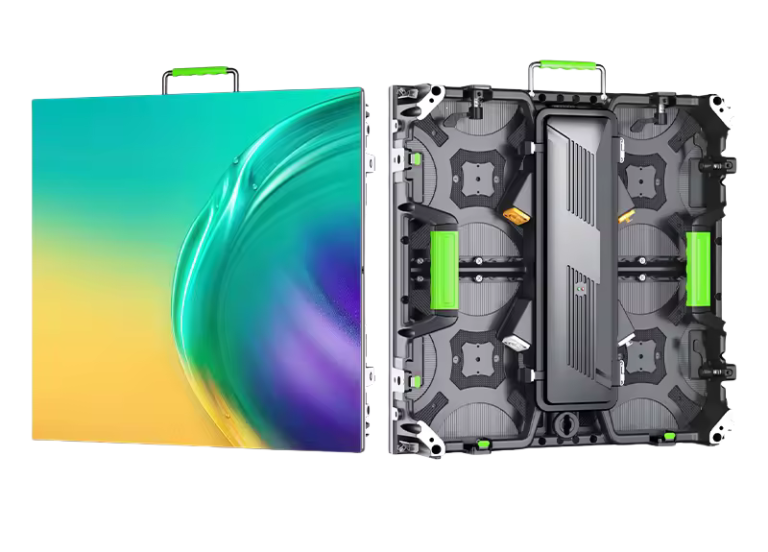

Outdoor Wall Series
OW Series:
This is most customized outdoor advertising screen, you can customize according to different application scenarios and screen sizes, the most suitable for your program and size.
- Stable and Elaborate
- Flexible and customizable size
- Front & Rear Maintenance
- Excellent value for cost
- High brightness, clearly visible under sunlight
Quick Connect
Power and signal lines use circular connectors for higher interface reliability.

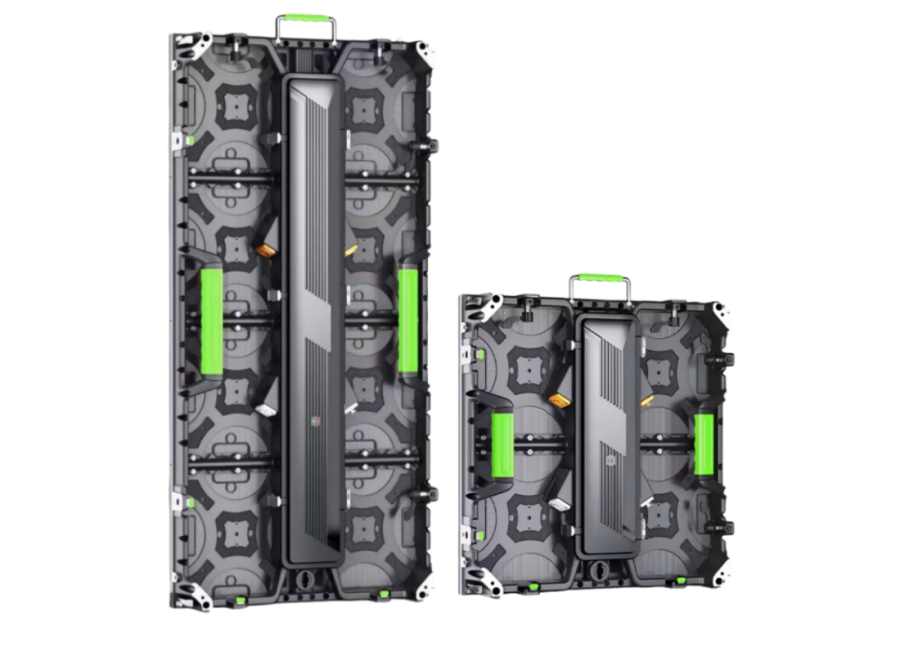

Multiple splicing options

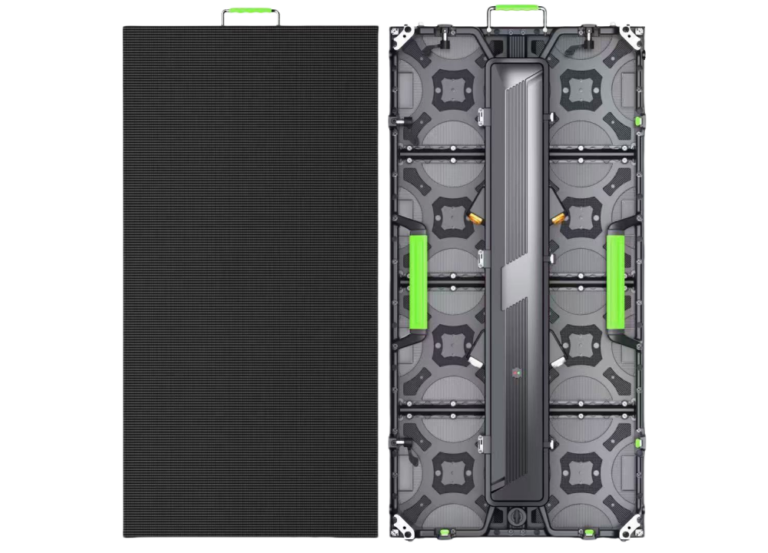

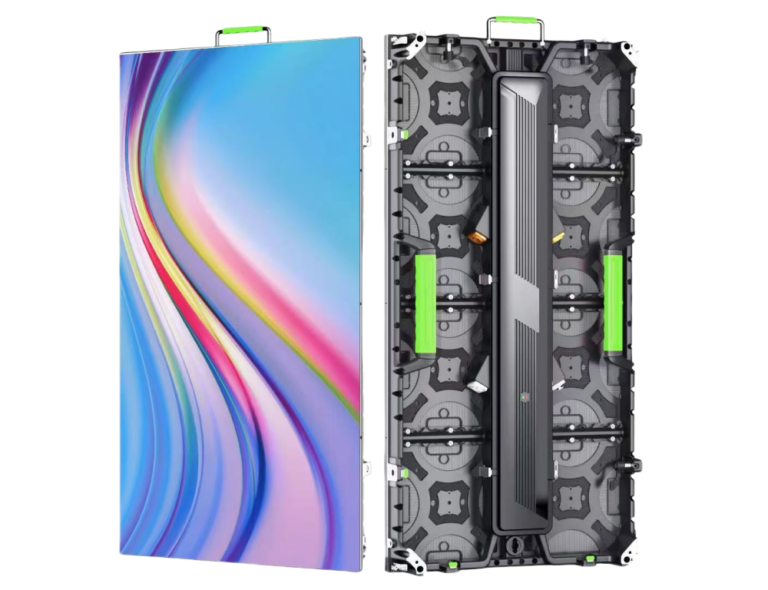

500 x 1000 mm and 500 x 500 mm cabinet sizes. Both cabinets can be rotated and assembled in any configuration to meet your various requirements.

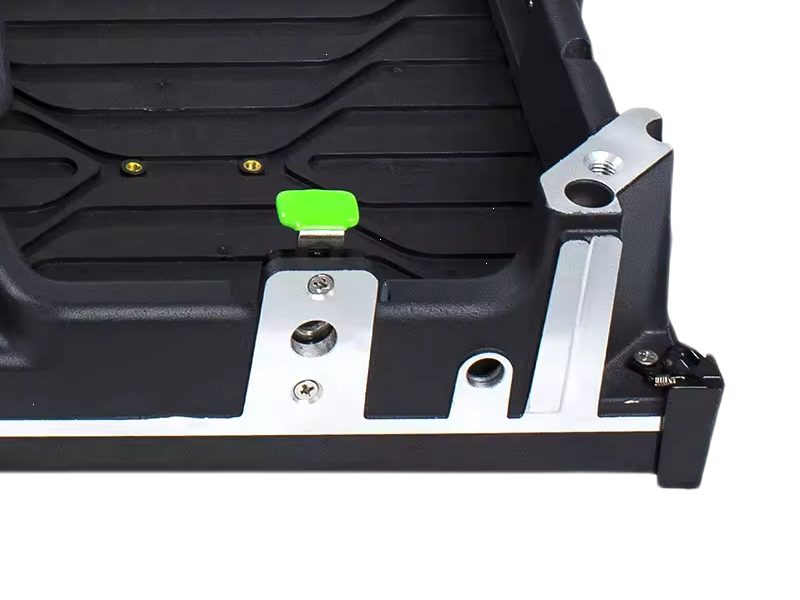

Edge protection design
The edges are fitted with corner guards to protect the LEDs from impact, making them easy to remove and install. They are the optimal choice for rental scenarios.
Multi-handle design for easy assembly
The dual handle design on the back makes it easy for installers to carry. The top handle can be used with hooks for vertical transport.
Building curved screens
It can be assembled from multiple angles to meet various stage construction requirements.
Multiple installation methods
Support lifting, fixing, back mounting, embedded, wall mounted, suspended, column mounted, and floor standing
High refresh rete and High grey scale
Suits for all outdoor applications
High refresh rate ：Higher picture fluency and faster response
High grey scale ： More accurate color display, better display of dark details, and reduced screen Moire effect
Video
Indoor Parameters
| P1.95 | P2.6 | P2.9 | P3.91 | P3.91 | P4.8 | P4.8 | |
|---|---|---|---|---|---|---|---|
| LED | SMD1515 | SMD2020 | |||||
| Moudle SIze(mm) | 250X250 | ||||||
| Moudle Resolution | 128*128 | 96*96 | 84*84 | 64*64 | 52*52 | ||
| Cabinet Size(mm) | 500*500 | 500*500 | 500*1000 | 500*500 | 500*1000 | ||
| Cabint Resolution | 256X256 | 192*192 | 168*168 | 128*128 | 128*256 | 104*104 | 104*208 |
| Density(dot/㎡) | 262,144 | 147,456 | 112,896 | 65,536 | 43,264 | ||
| Module Quantity | 4 | 4 | 8 | 4 | 8 | ||
| Weight(panel) | 7.5KG | ||||||
| Max Power(w/m²) | 800W | ||||||
| Ave Power(w/m²) | 240W | ||||||
| Maintenace | Front&Rear | ||||||
| Input(V) | 100-240 | ||||||
| Brightness | 800 | ||||||
| Waterproof | IP65/IP54 | ||||||
| Grey Level | 14 | ||||||
| Refresh Frequency | 3840HZ | ||||||
| Operating Temperatrue | -20~60℃ | ||||||
| Operating Humidity | 5%-95% | ||||||
Outdoor Parameters
| P2.6 | P2.9 | P3.91 | P3.91 | P4.81 | P4.81 | ||
|---|---|---|---|---|---|---|---|
| LED | SMD1415 | SMD1921 | |||||
| Moudle SIze(mm) | 250X250 | ||||||
| Moudle Resolution | 96*96 | 84*84 | 64*64 | 52*52 | |||
| Cabinet Size(mm) | 500*500 | 500*500 | 500*1000 | 500*500 | 500*1000 | ||
| Cabint Resolution | 192*192 | 168*168 | 128*128 | 128*256 | 104*104 | 104*208 | |
| Density(dot/㎡) | 147,456 | 112,896 | 65,536 | 43,264 | |||
| Module Quantity | 4 | 4 | 8 | 4 | 8 | ||
| Weight/pane | 8.5KG | ||||||
| Max Power(w/m²) | 900W | ||||||
| Ave Power(w/²) | 270W | ||||||
| Maintenace | Front&Rear | ||||||
| Input(V) | 100-240 | ||||||
| Brightness | 4000-4500 | 4500 | |||||
| Waterproof | IP65/IP54 | ||||||
| Grey Level | 14 | ||||||
| Refresh Frequency | 3840HZ | ||||||
| Operating Temperatrue | -20~60℃ | ||||||
| Operating Humidity | 5%-95% | ||||||
