Indoor Commercial Display – COB Series
Chip-on-Board LED Display Series
Designed for premium indoor environments, the COB Series offers superior durability, ultra-fine pixel pitch, and outstanding visual performance. Ideal for control rooms, high-end conference centers, retail environments, museums, and luxury commercial spaces, it ensures immersive viewing and long-lasting stability.
⦁ Ultra-fine pixel pitch for detailed and smooth visuals
⦁ Enhanced durability with anti-collision and dust-proof surface
⦁ Wide viewing angle with reduced glare
⦁ Full front maintenance for easy service

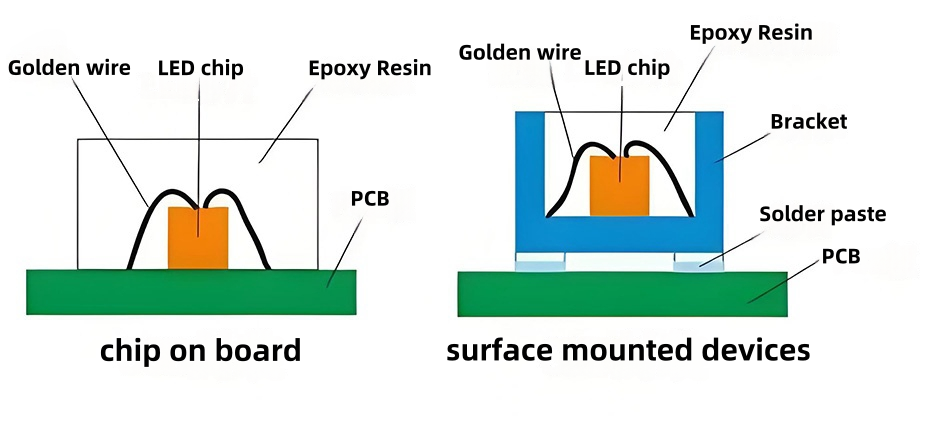

What is chip on bord？
SMD：Surface Mounted Decices(SMD): SMT + reflow soldering technology is used to solder LED devives on PCB to make display modules
COB: chip on board package has stronger protection anti-collision, waterproof, anti-static and washable.COB package has ultra-high reliability and stability. The bad point rate of cob packaging technology is less than 5ppm.
MICRO-COB series
Micro-COB Series covers pixels of 0.7mm, 0.9mm, 1.2mm, 1.5mm, to provide 4K/8K video quality.
Introduction
Lightweight
Tangibility
Smoothness

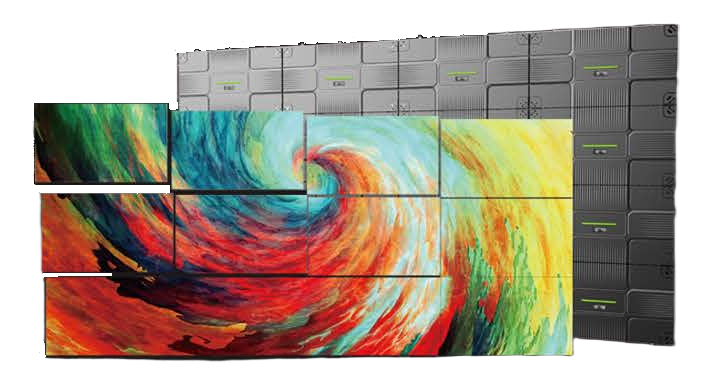

Mixed ways of installation with multiple magnetic openings on backside
Redundancy system

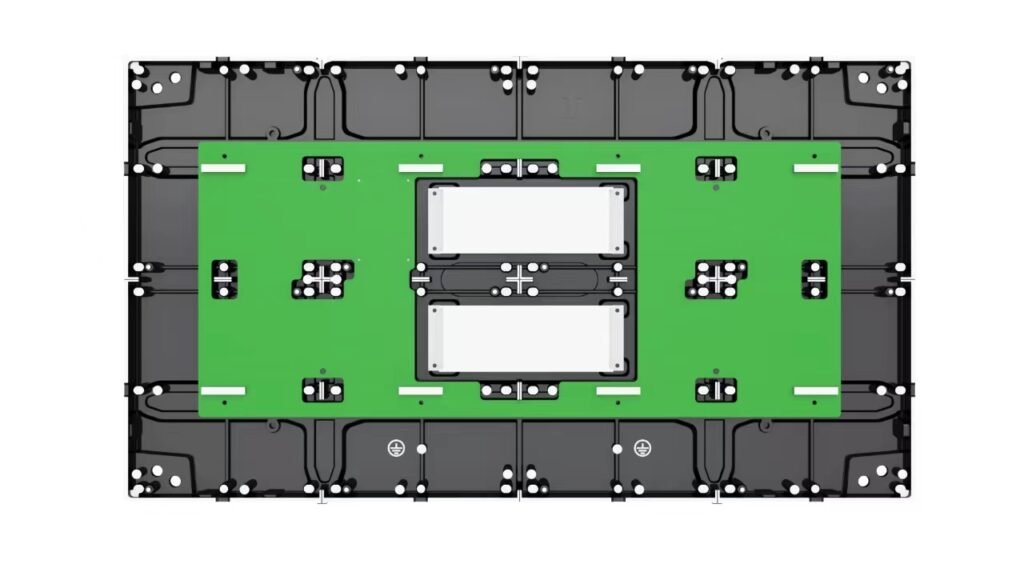

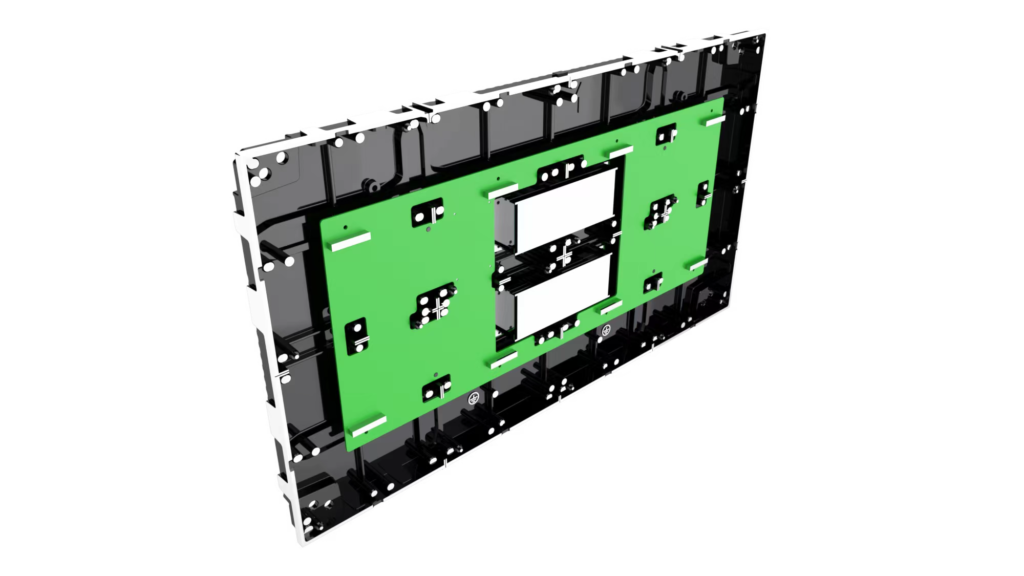

ASSEMBLY VIEW
Micro-COB Series is consisted of modular, independent parts, and LED modules and PSU are connected cordlessly through the HUB board, therefore ensuring screen flatness to a great extent.
Parameters
| P0.78 | P0.93 | P1.25 | P1.56 | |
|---|---|---|---|---|
| LED | Flip-chip COB | |||
| Moudle SIze(mm) | 150X168.75 | |||
| Moudle Resolution | 192X216 | 160X180 | 120X135 | 96X108 |

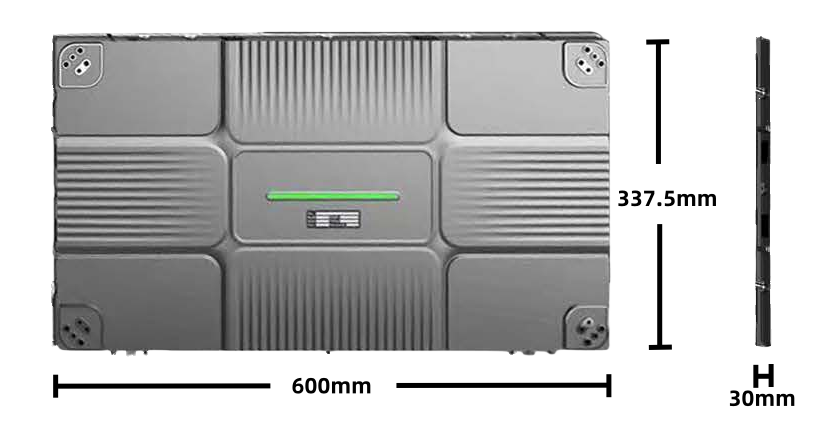

| Cabinet Size(mm) | 600X337.5 | |||
| Cabinet Resolution | 768X432 | 640X360 | 480X270 | 384X216 |
| Density(dot/㎡) | 1,638,400 | 1,137,778 | 640,000 | 409,600 |
| Module Quantity | 8 | |||
| Weight | 5.1KG | |||
| Max Power(w/m²) | 500W | |||
| Ave Power(w/m²) | 210W | |||
| Maintenace | Front | |||
| Input(V) | 100-240 | |||
| Brightness | 500-800 | |||
| Waterproof | IP45 | |||
| Grey Level | 16 | |||
| Refresh Frequency | 3840HZ | |||
| Operating Temperatrue | -20~50℃ | |||
| Operating Humidity | 35-75% | |||
