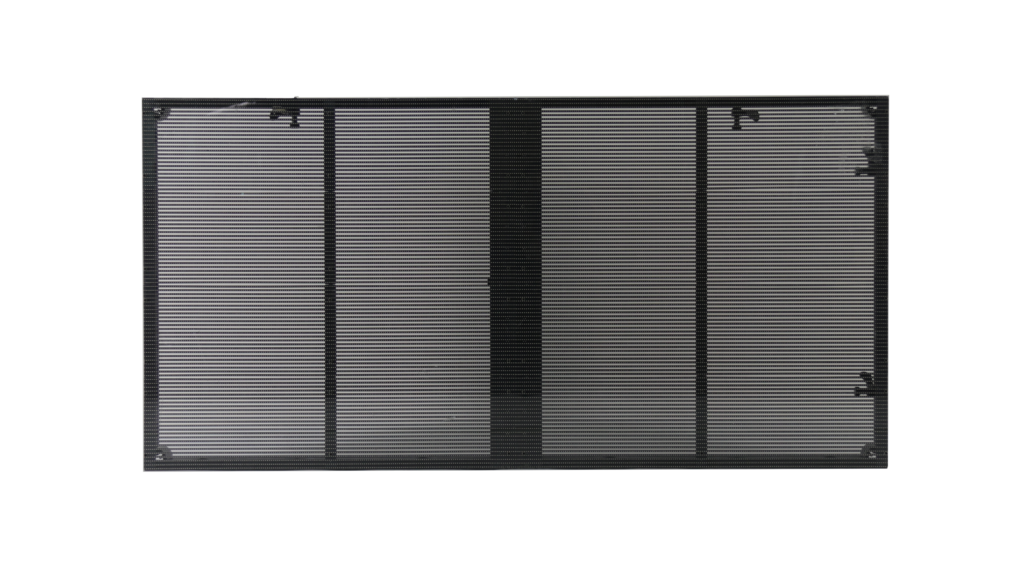

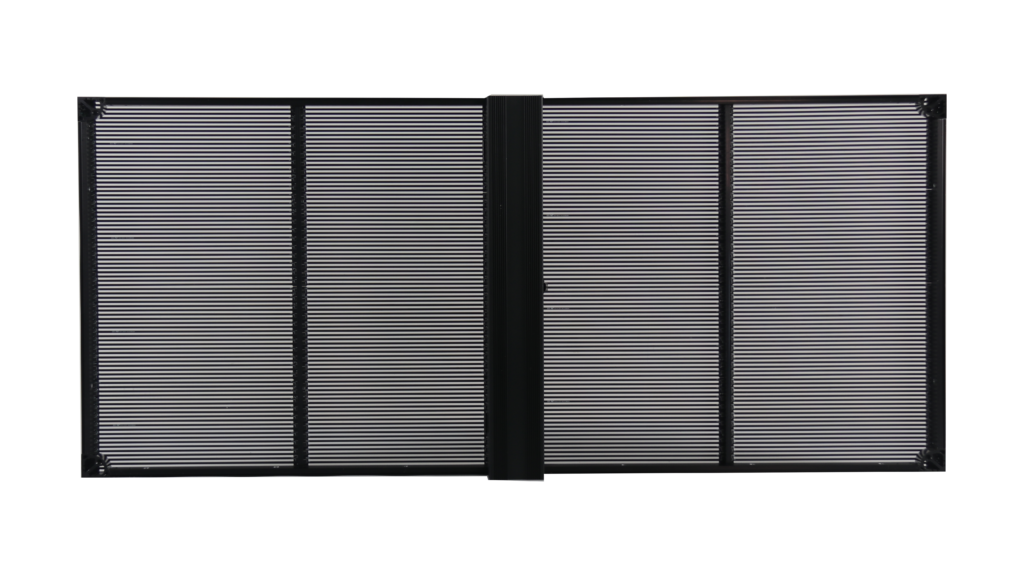

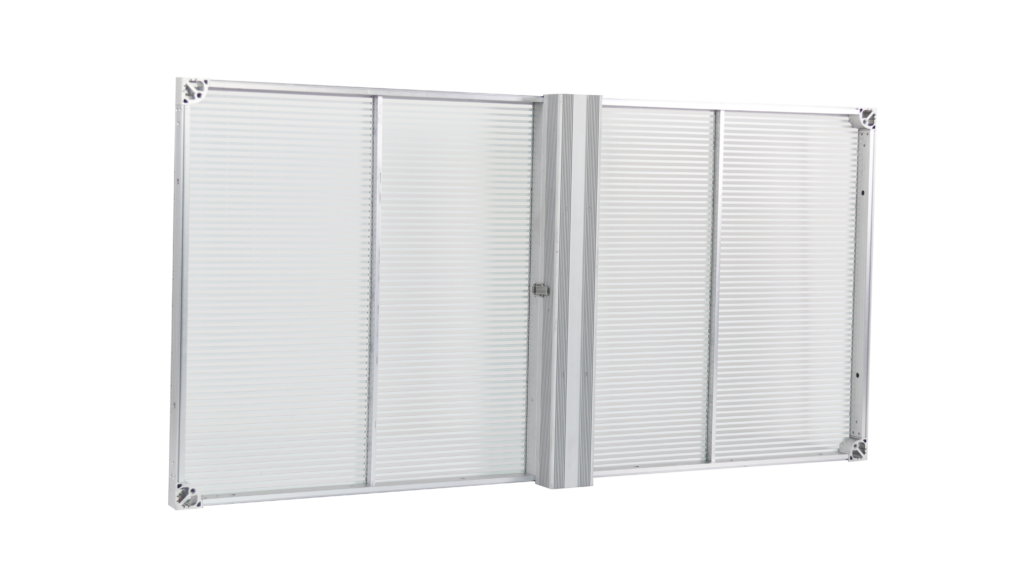

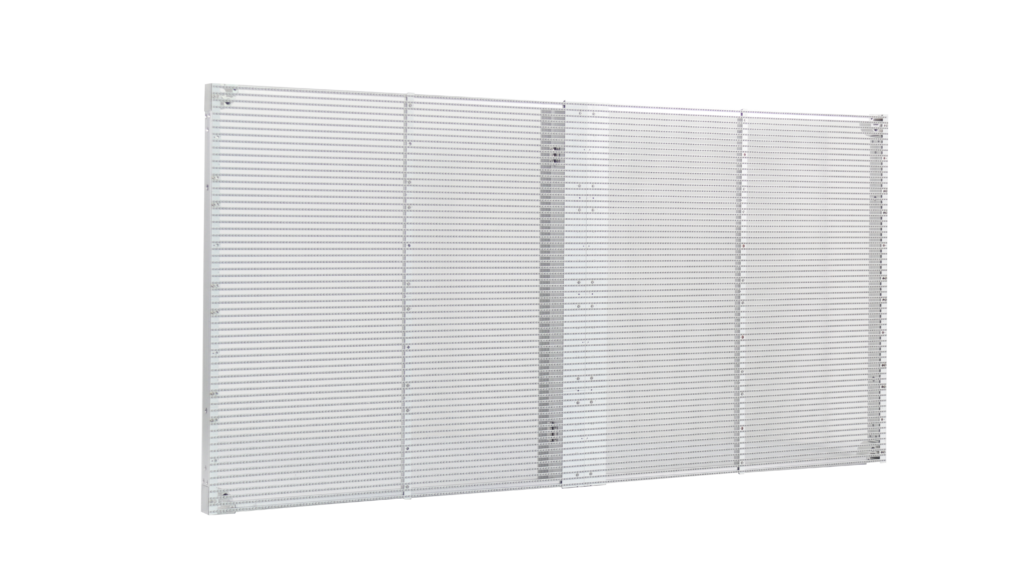

Glass screen front illuminated
GL-F Series

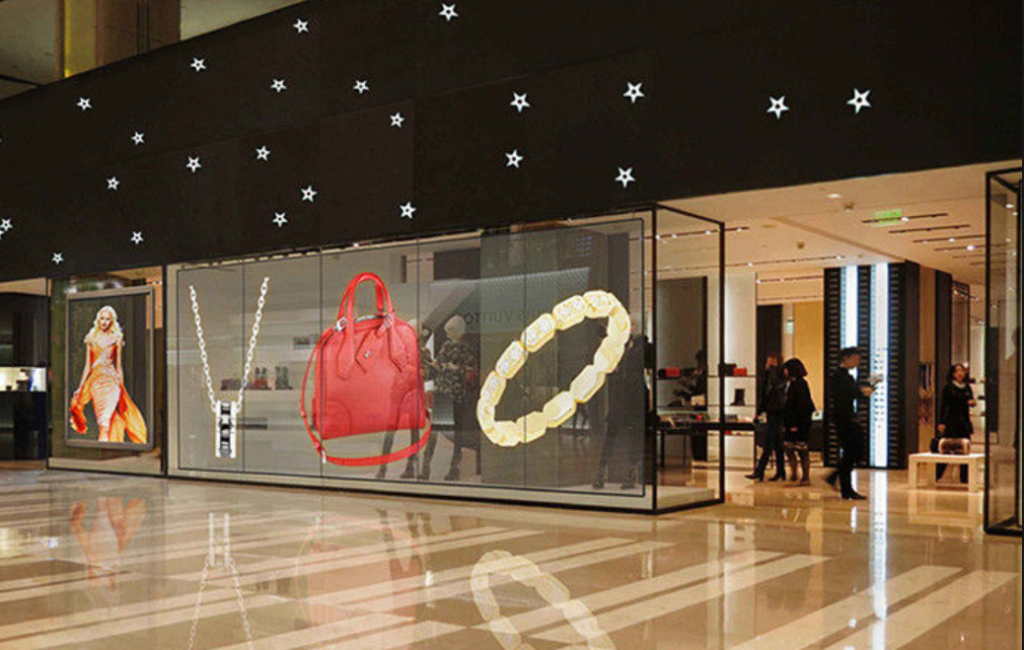

It’s the ideal choice for a wide range of applications, including shopping malls, mobile phone stores, retail chain shops, window glass LED displays, and automotive 4S showrooms. Designed for high-impact advertising, this series delivers vibrant visuals while maintaining natural light transmission—making it perfect for storefronts and commercial spaces that require both visibility and brightness.
- High Transparency (70%-85%)

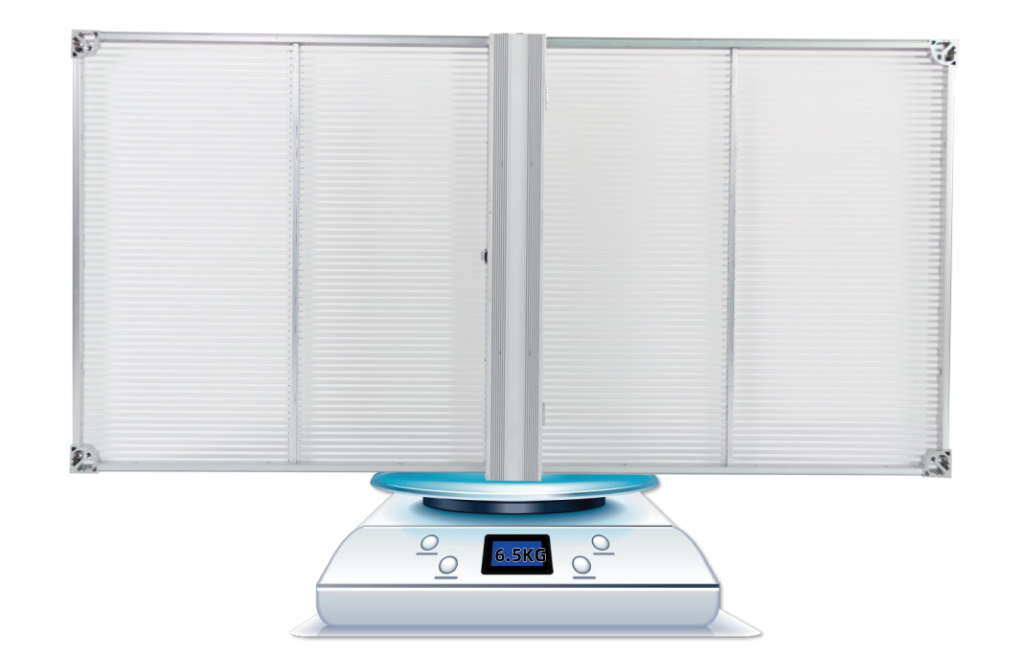

- Ultra-thin and lightweight, 13kg/m²
- Quick Installation & Removal
- Energy Efficient Operation

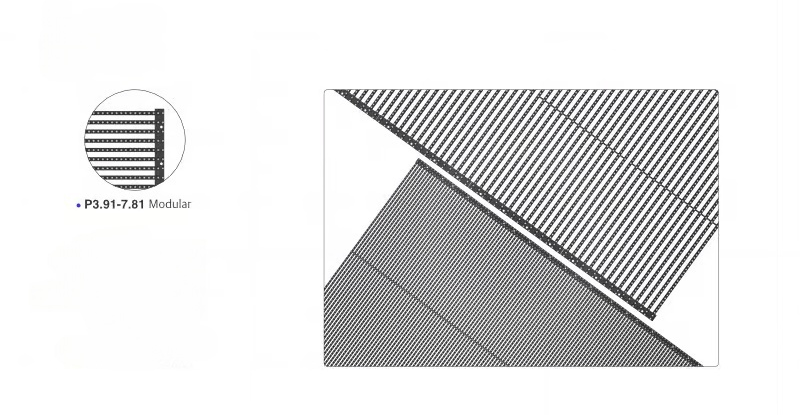

Modular Design
Our high-precision PCB cutting process ensures each layer’s width is precisely tailored to fit an LED bead, while maintaining optimal clearance optimal clearance for seamless light transmission.

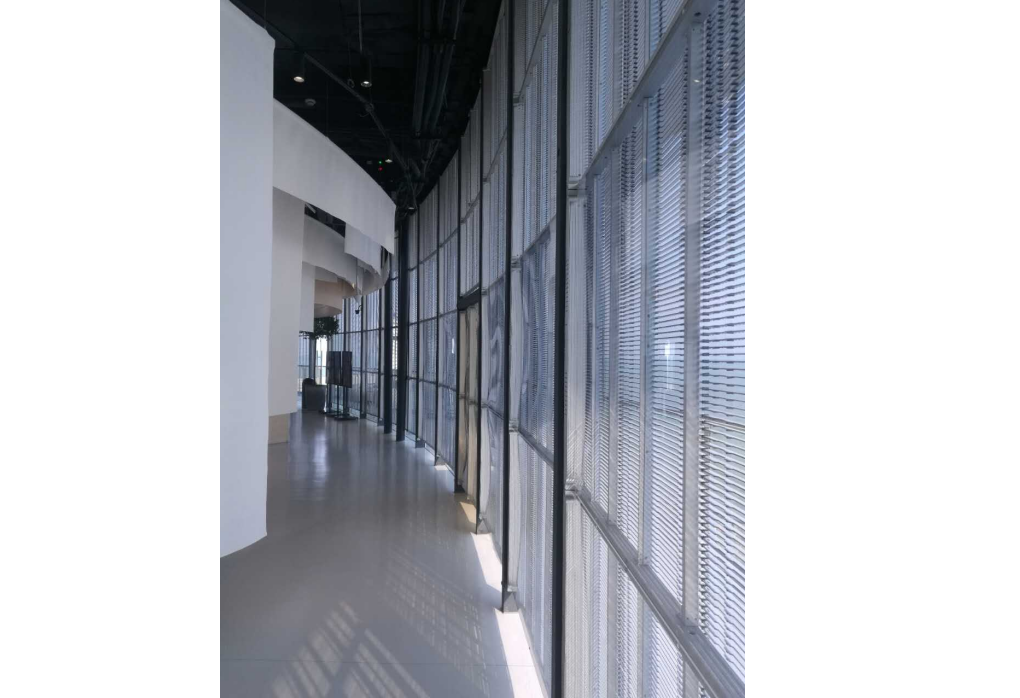

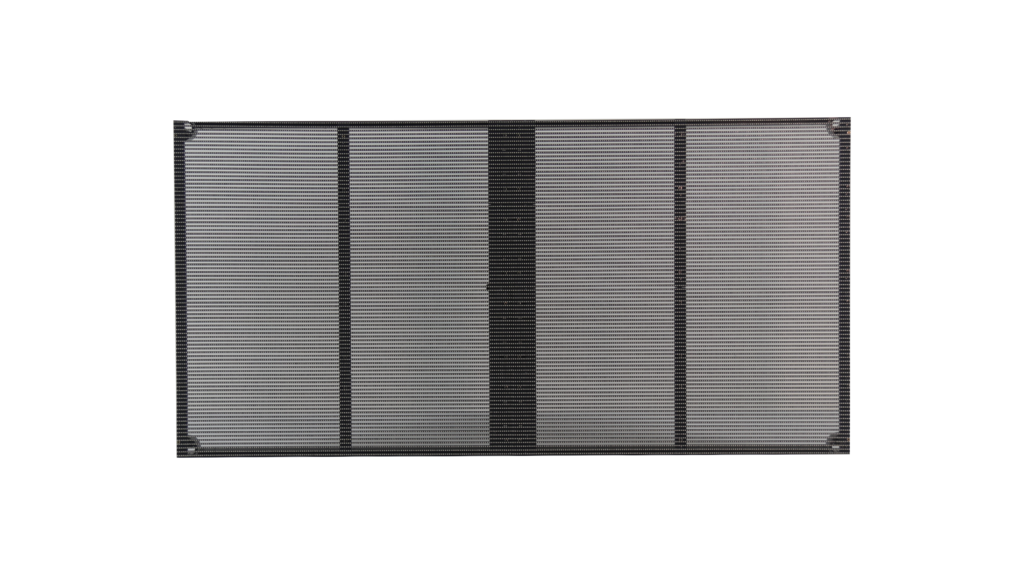

No exposed wires, clean look – ideal for retail
With its sleek, wire-free design and clean, modern aesthetics, our LED screens bring a tech-forward feel to retail environments.

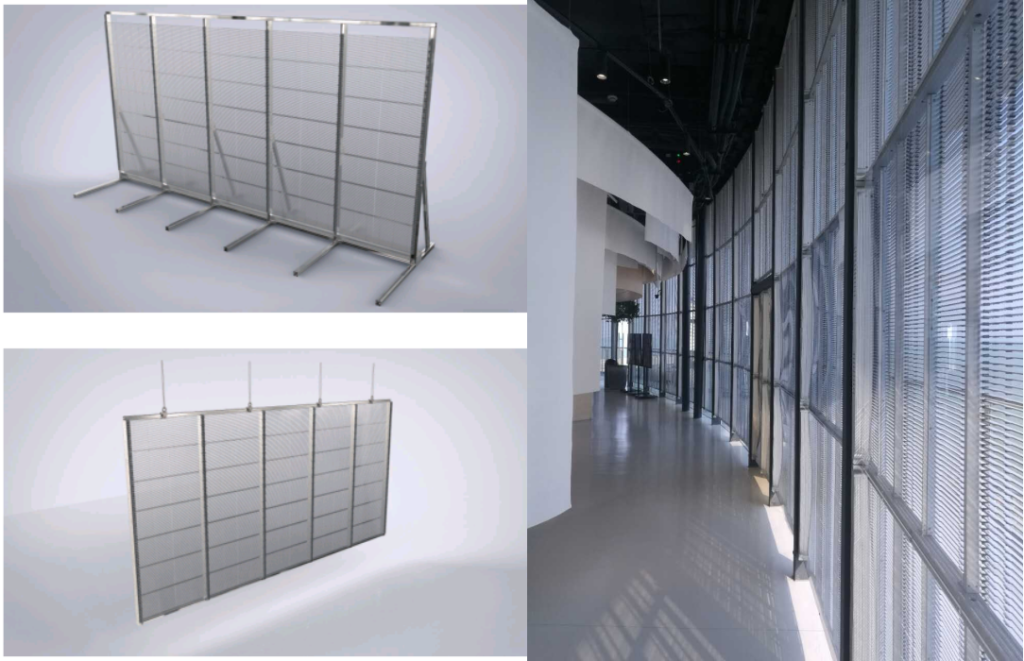

Easy Maintain & Installation

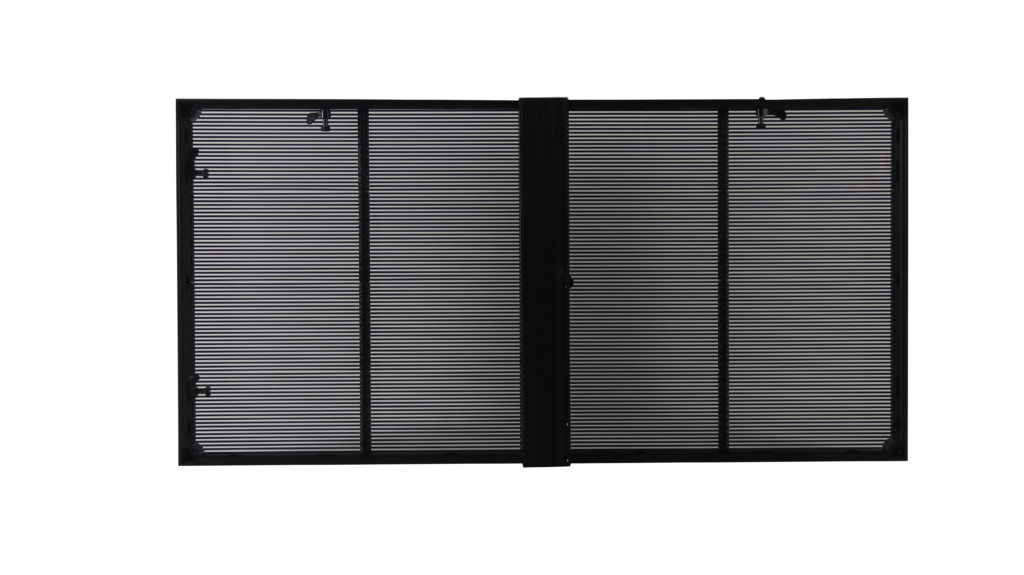

Flexible installation: ceiling-hung, floor-standing, or wall-mounted. and Seamless splicing of various shapes through quick lockbuckle connection

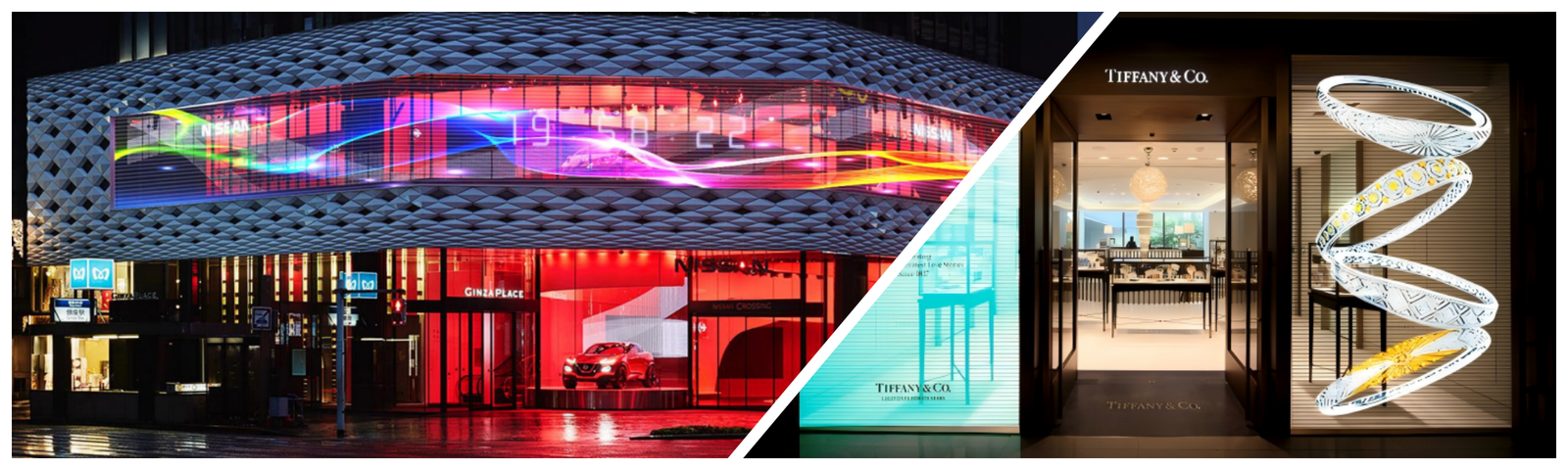

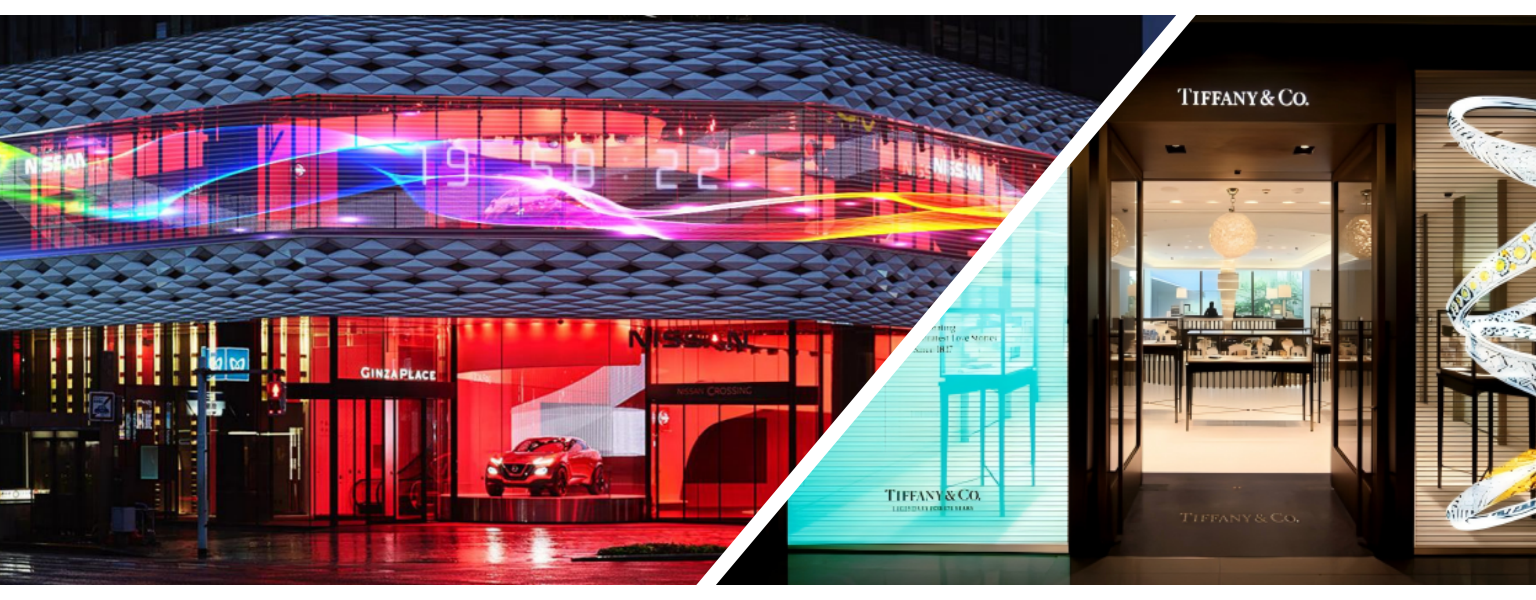

High Transparency
Perfectly realizes the borderless integration between screen, background and environment
Parameter
| P3.9-7.8 | P2.6-5.2 | |
|---|---|---|
| LED | SMD1921 | SMD1515 |
| Moudle SIze(mm) | 500*125 | |
| Cabinet Size(mm) | 1000*500 | |
| Cabinet Resolution | 256*128 | 384*192 |
| Moudle Resolution | 128*32 | 192*48 |
| Density(dot/㎡) | 32,768 | 73,728 |
| Module Quantity | 8 | |
| Weight(KG/m²) | 13KG | |
| Max Power(W/m²) | 600W | |
| Ave Power(W/m²) | 240W | |
| Maintenace | Rear | |
| Input(V) | 100-240 | |
| Brightness | 800-5500 | 650-4000 |
| Waterproof | IP30 | |
| Grey Level | 16 | |
| Refresh Frequency | 3840HZ | |
| Operating Temperatrue | -20~60℃ | |
| Operating Humidity | 10%-85% | |
