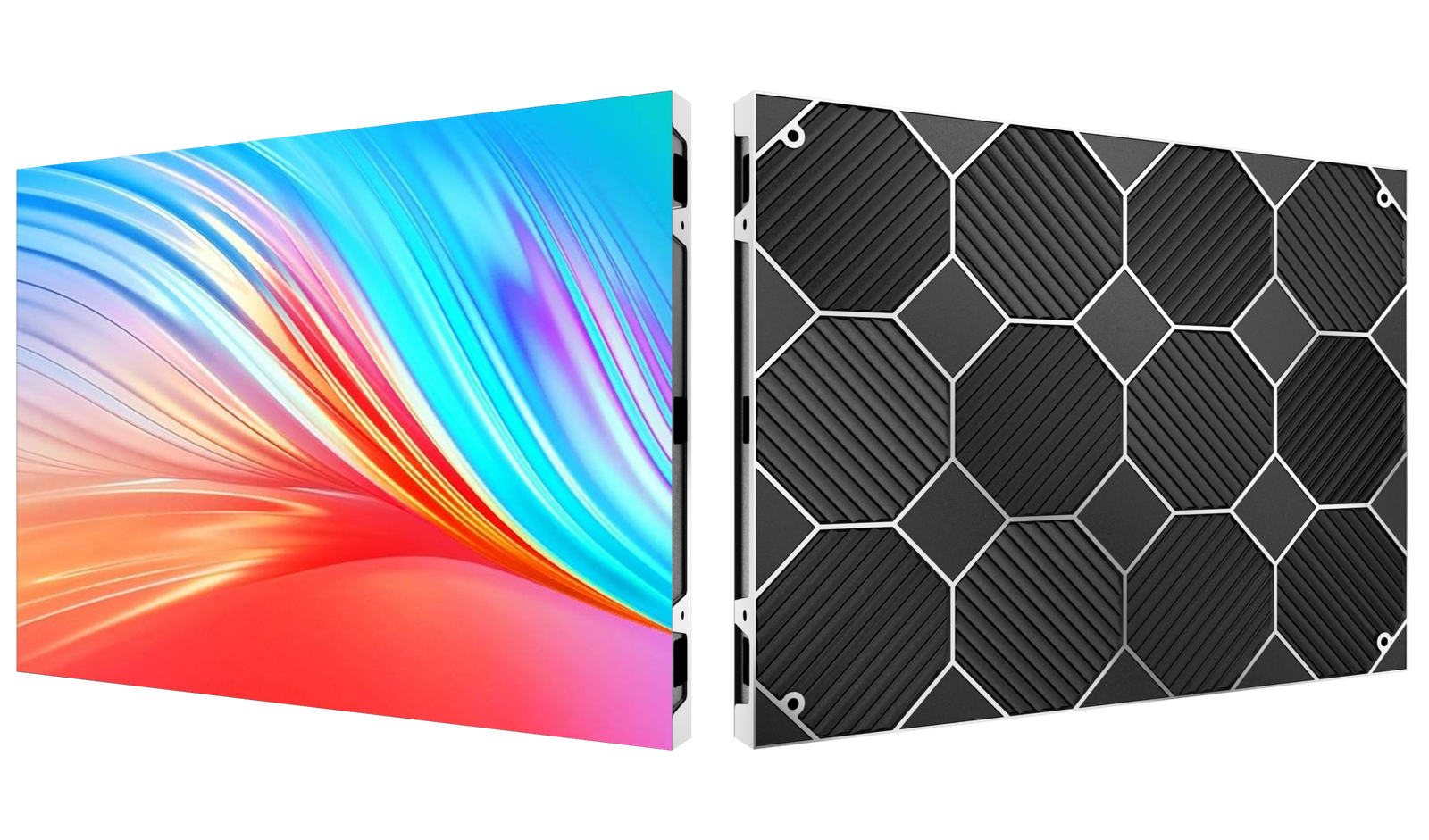

Indoor Commercial Display – MF Serices
MF Series:
- Light Weight
- Versatile Platform
- 100% Front Service
- Seamless Screen
- 4:3 Ratio

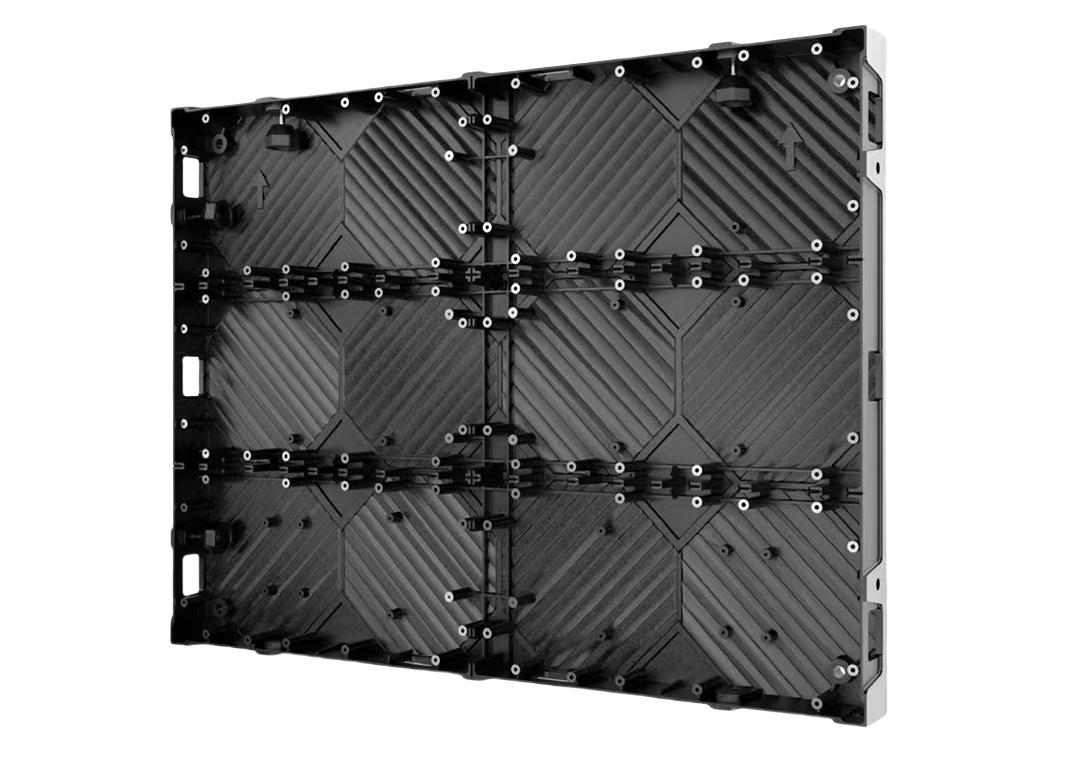

High Accuracy Tiles
CNC-produced cabinets make the IDC series with higher precision, which helps make a flat screen for your project.

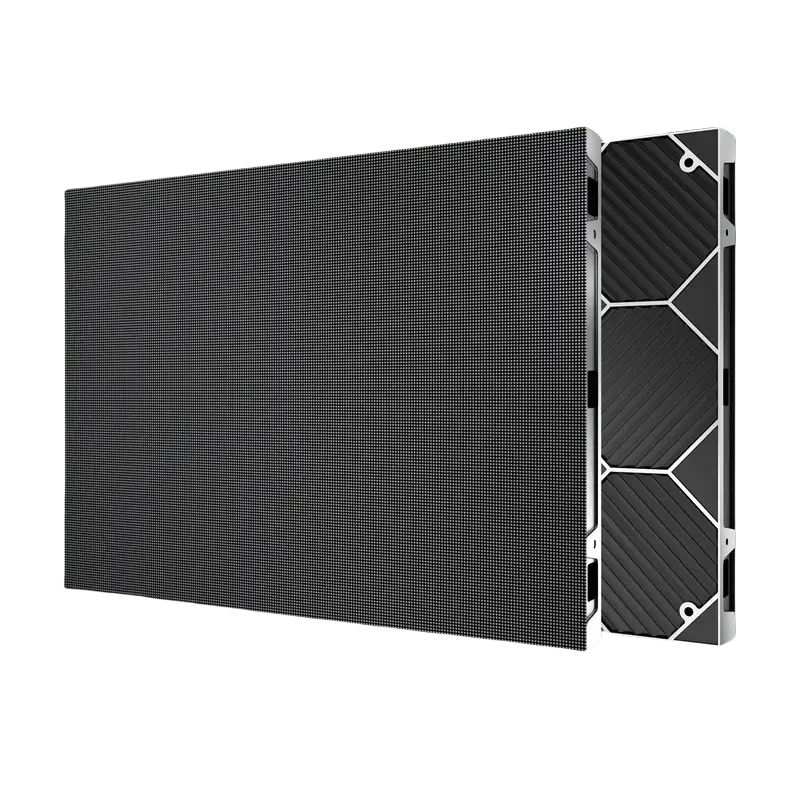

Light Weight / Super Slim
The IDC series is 8kg per panel and 48mm thickness, it is easy for installation and maintenance.

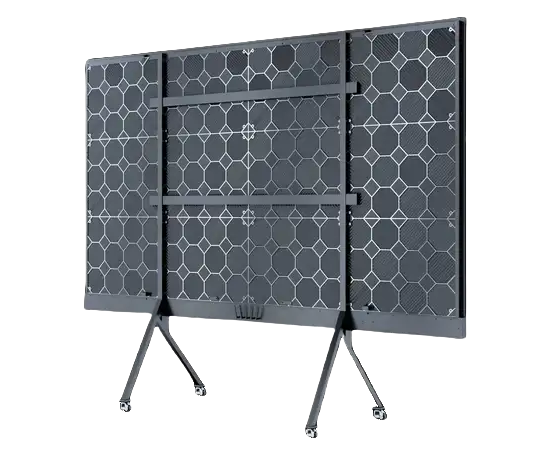

All in One LED Screen
With IDC and special use bracket, we will be able to make an all in one screen for office use.

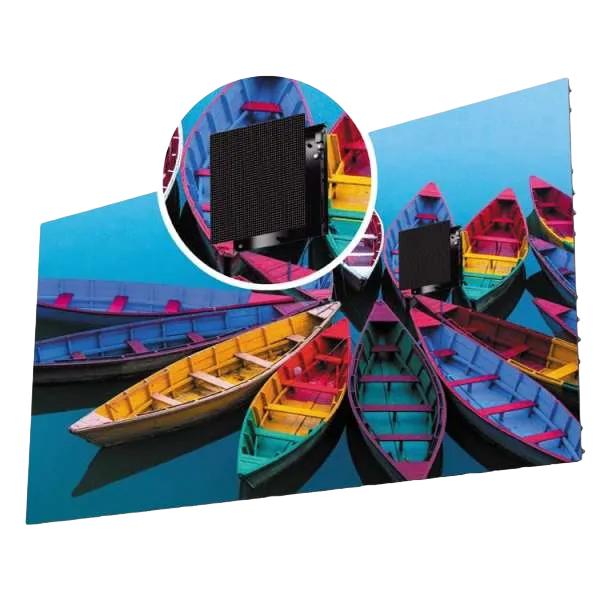

Make a Seamless Screen
IDC modules can be slightly adjusted so as to make a seamless screen easily.
Video
Parameters
| P1.2 | P1.5 | P1.8 | P2.5 | |
|---|---|---|---|---|
| LED | SMD1010 | SMD1515 | ||
| Moudle SIze(mm) | 320*160 | |||
| Moudle Resolution | 256*128 | 208*104 | 172*86 | 128*64 |
| Cabinet Size(mm) | 640*480 | |||
| Cabinet Resolution | 512*384 | 416*312 | 344*258 | 256*64 |
| Density(dot/㎡) | 640,000 | 422,500 | 286,666 | 160,000 |
| Module Quantity | 6 | |||
| Weight | 7.2KG | |||
| Max Power(w/pamel) | 500W | |||
| Ave Power(w/panel) | 120W | |||
| Maintenace | Front | |||
| Input(V) | 100-240 | |||
| Brightness | 500 | 600 | 700 | |
| Waterproof | IP31 | |||
| Grey Level | 16 | |||
| Refresh Frequency | 3840HZ | |||
| Operating Temperatrue | -20~60℃ | |||
