Outdoor Wall Series
OW Series:

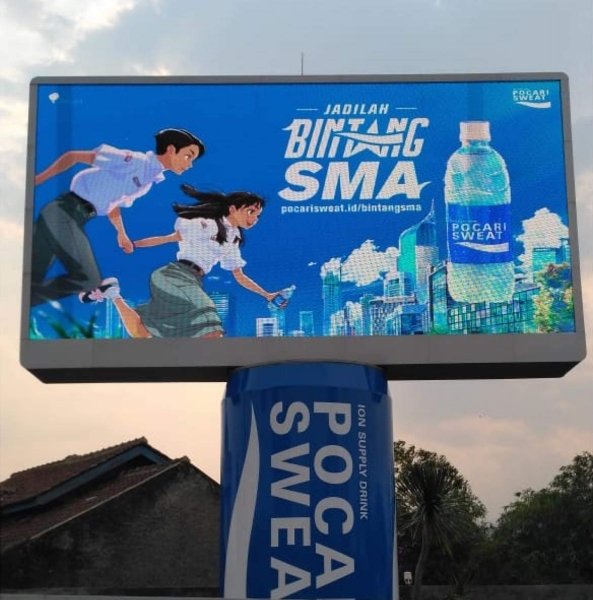

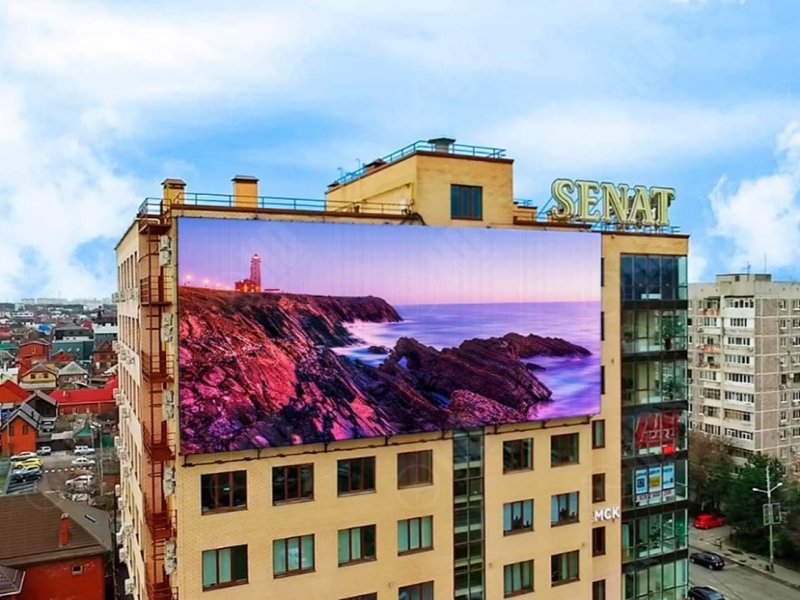

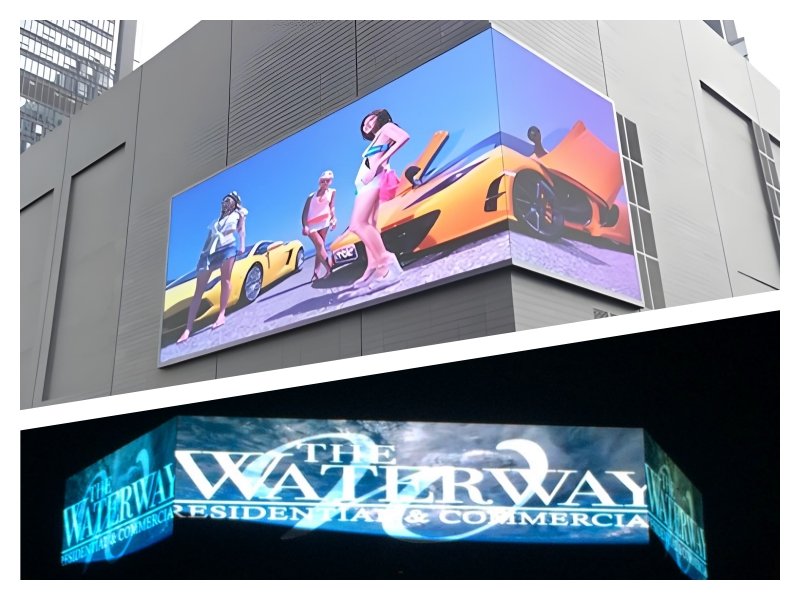

This is most customized outdoor advertising screen, you can customize according to different application scenarios and screen sizes, the most suitable for your program and size.
Key Features：
- Stable and Elaborate
- Flexible and customizable size

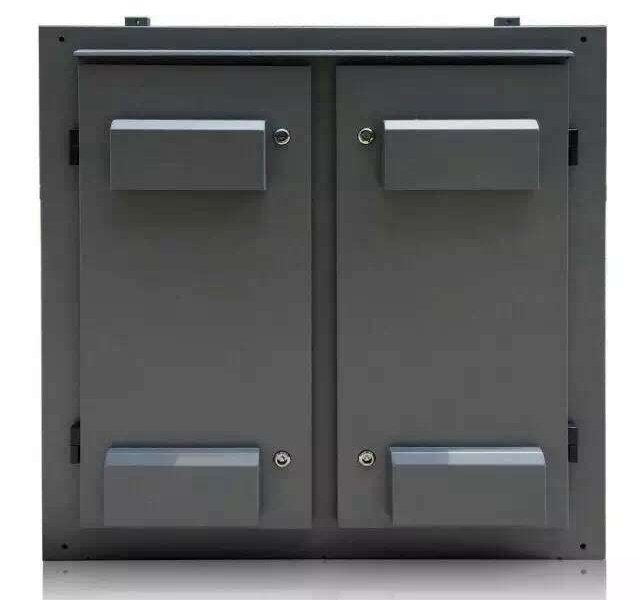

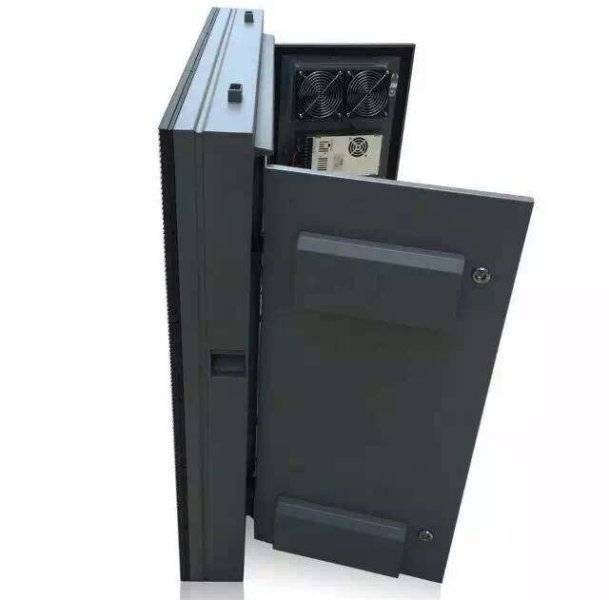

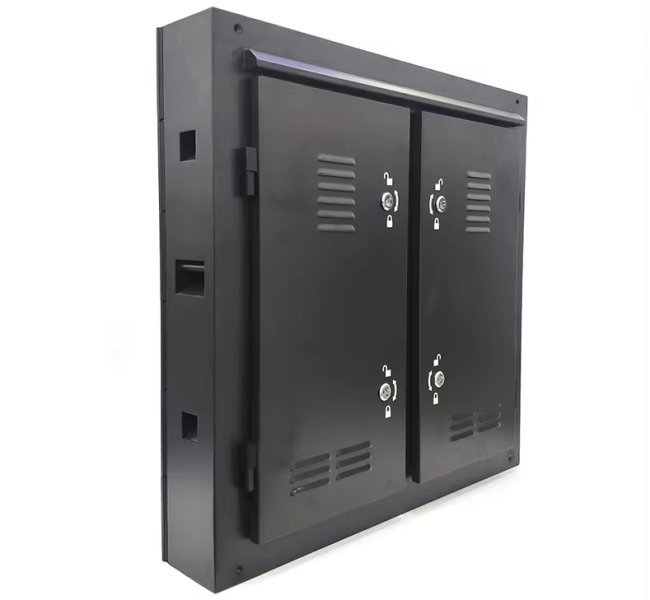

- Front & Rear Maintenance
- Excellent value for cost
- High brightness, clearly visible under sunlight

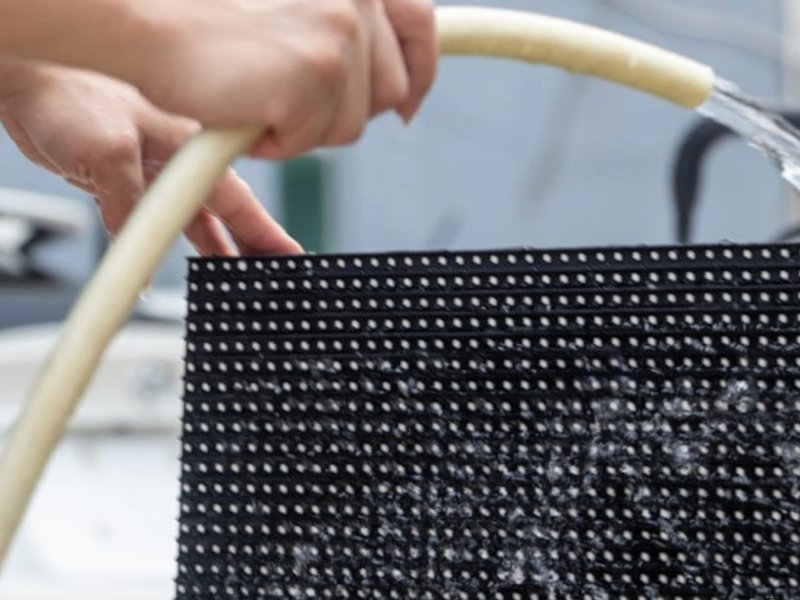

Ip65 Water-Proof
UV resistant , dustproof and waterproof, lP65 protection level; stable signal and power supply , safe and reliable for outdoor use

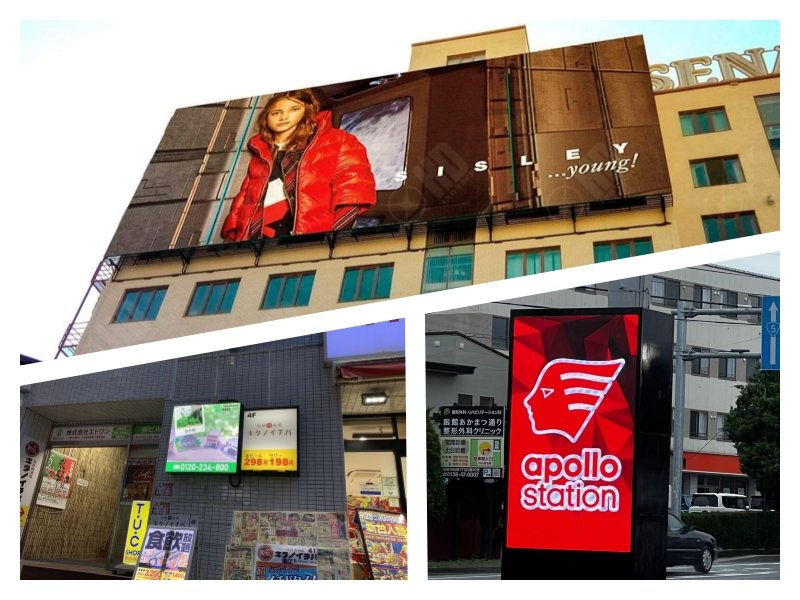

Flexible and customizable size
You can find the right size for both small and large size projects.
Parameters
| P3.9 | P4.8 | P5.3 | P6.6 | P8 | P10 | |
|---|---|---|---|---|---|---|
| LED | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| SIze(mm) | 250X250 | 250X250 | 320X320 | 320X320 | 320X320 | 320X320 |
| Resolution | 64X64 | 52X52 | 60X60 | 48X48 | 40X40 | 32X32 |
| Density(dot/㎡) | 65, 536 | 43,264 | 35,156 | 22,500 | 15,625 | 10,000 |
| Cabinet Size(mm) | 1000X1000 | 1000X1000 | 960X960 | 960X960 | 960X960 | 960X960 |
| Resolution | 256X256 | 208X208 | 180X180 | 144X144 | 120X120 | 96X96 |
| Module Quantity | 16 | 16 | 9 | 9 | 9 | 9 |
| Weight | 39KG | 39KG | 39KG | 39KG | 39KG | 39KG |
| Max Power(w/pamel) | 920W | 900W | 820W | 820W | 800W | 850W |
| Ave Power(w/panel) | 200W | 200W | 200W | 200W | 200W | 200W |
| Maintenace | Front&Rear | Front&Rear | Front&Rear | Front&Rear | Front&Rear | Front&Rear |
| Input(V) | 110-220 | 110-220 | 110-220 | 110-220 | 110-220 | 110-220 |
| Brightness | 6500 | 6500 | 6500 | 6500 | 6500 | 6500 |
| Waterproof | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Grey Level | 14 | 14 | 14 | 14 | 14 | 14 |
| Refresh Frequency | 3840HZ/7680HZ | 3840HZ/7680HZ | 3840HZ/7680HZ | 3840HZ/7680HZ | 3840HZ/7680HZ | 3840HZ/7680HZ |
| Operating Temperatrue | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ |
| Operating Humidity | 5%-95% | 5%-95% | 5%-95% | 5%-95% | 5%-95% | 5%-95% |
Our Service
- High-Quality Products – Premium LED displays with strict quality control.
- 2-Year Warranty – We provide a 2-year warranty for all products.
- Technical Support – Professional guidance on product selection and usage.
- Customization – Tailored LED solutions to meet your project needs.
- After-Sales Service – Remote troubleshooting and spare parts supply.
- Fast Delivery – Reliable logistics for on-time worldwide shipping.
