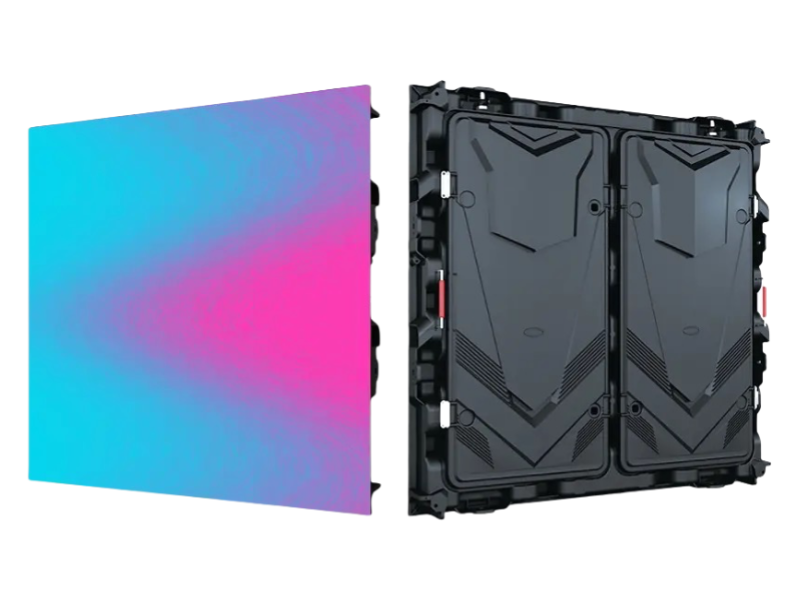

Outdoor Stadium Series
OS Series:

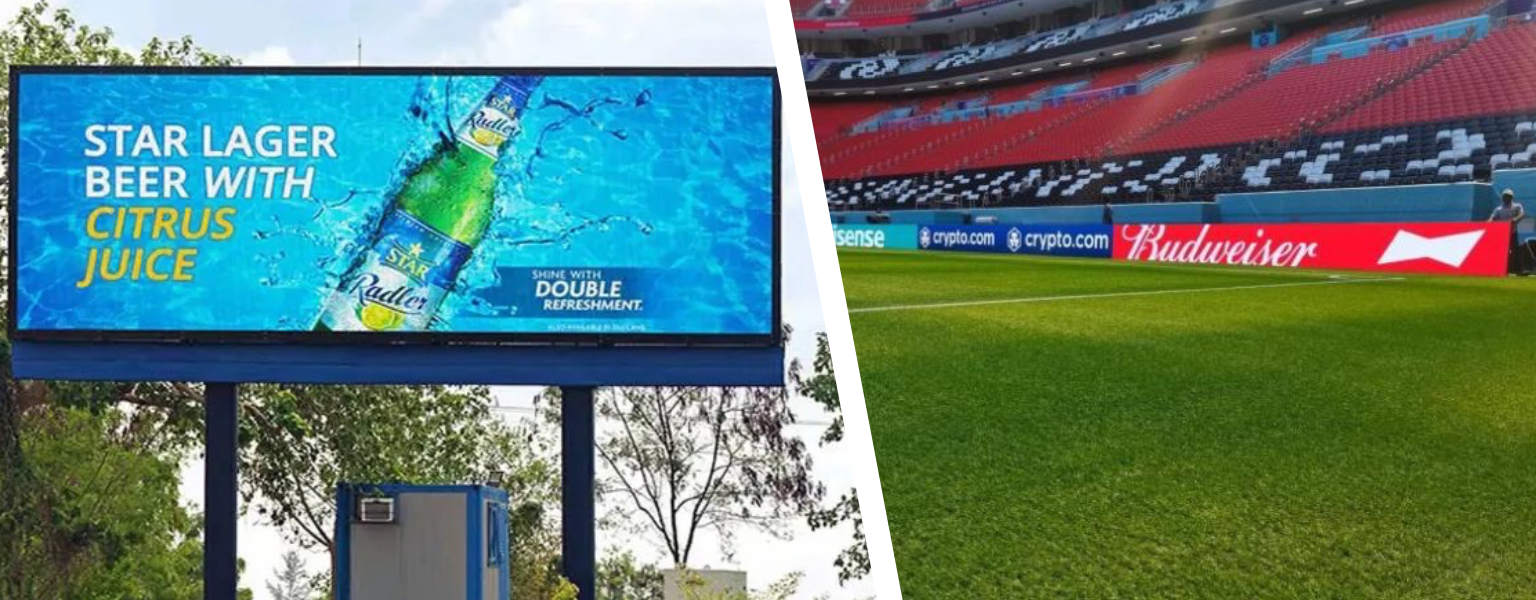

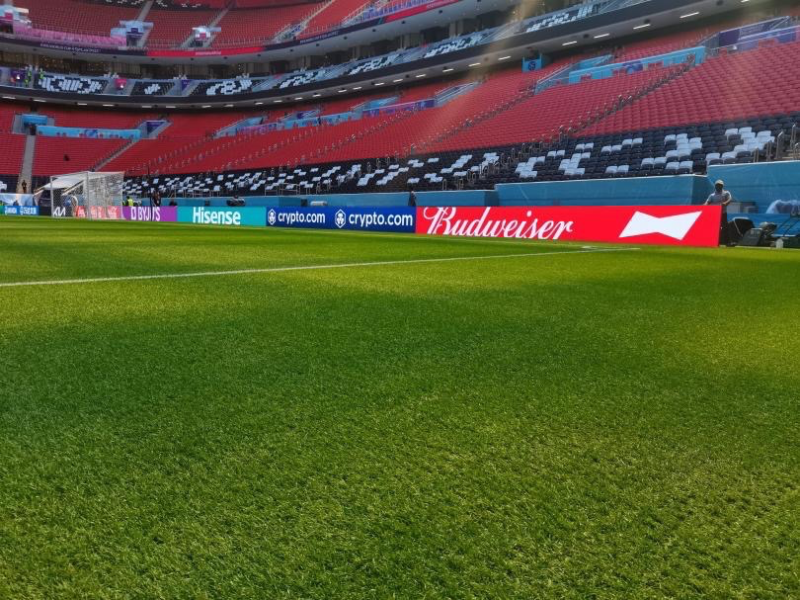

It used for fixed , rental and perimeter LED display.As a stadium led display, fencing advertising, and an information display can display any length of strip advertising, it is used for a lot of sports games, indoor basketball, volleyball, indoor football, ice hockey games, skating games, badminton, gymnastics.Outdoors include football, triathlon, and so on.
Key Features:
- Multiple function, used for fixed/rental/sports screen.
- Die-casting aliminum, light weight
- Front & Rear Maintenance
- Easy Installation and Connection
- Soft maskand topcover to protect the sportsman.

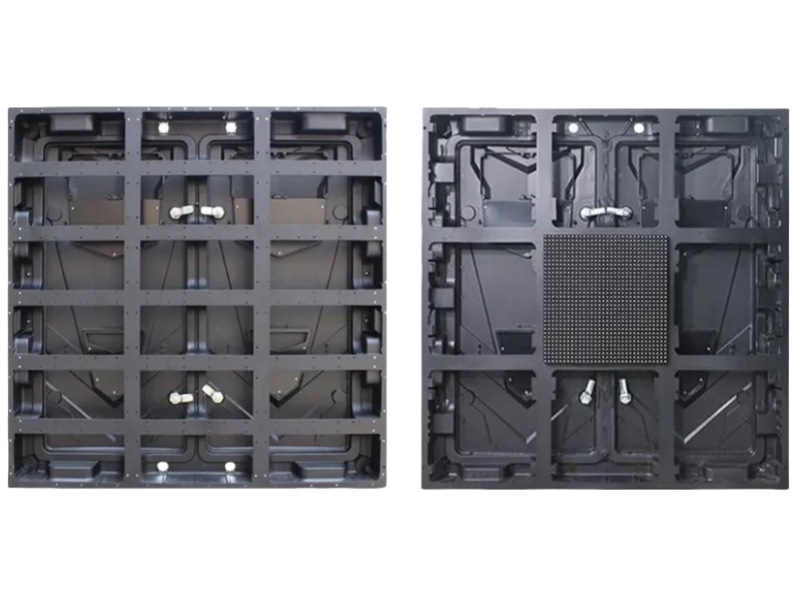

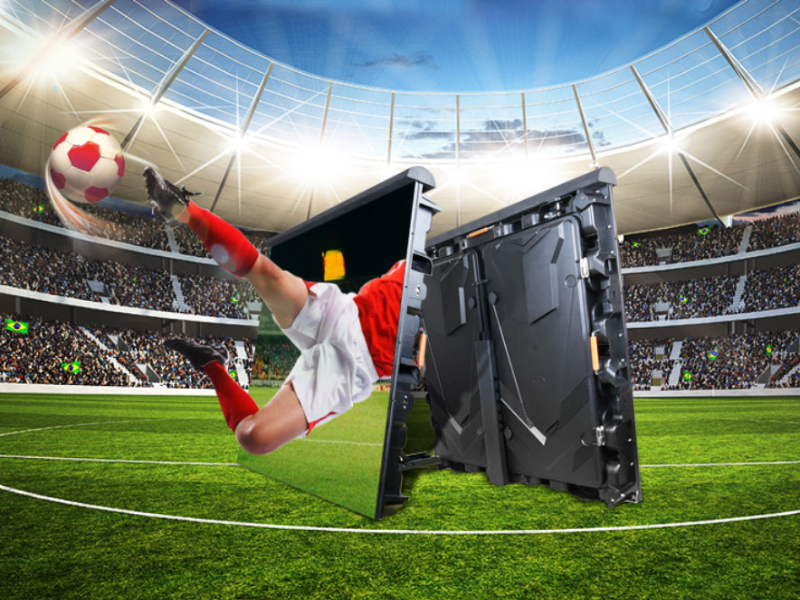

Front & Rear Maintenance
Both 320x160mm and 320x320mm LED modules are suitable, and the LED panel can be maintained from front and rear side.

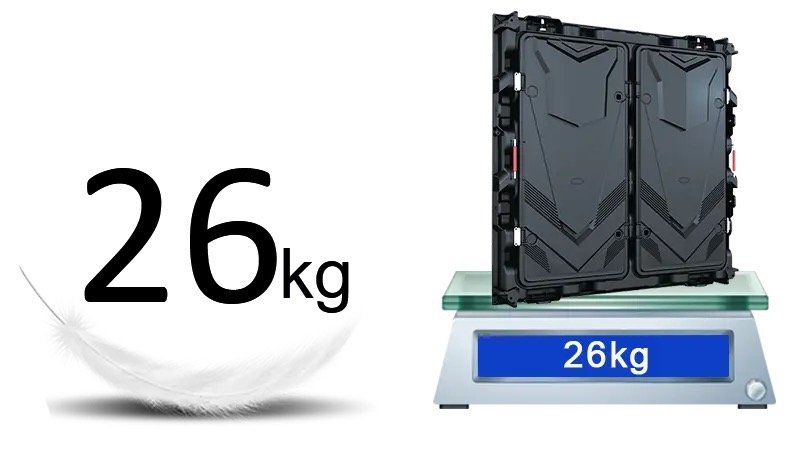

light weight
light weight die casting magnesium material, one complete LED screen panel weight is only 26KG, it is half of common outdoor iron LED cabinet.

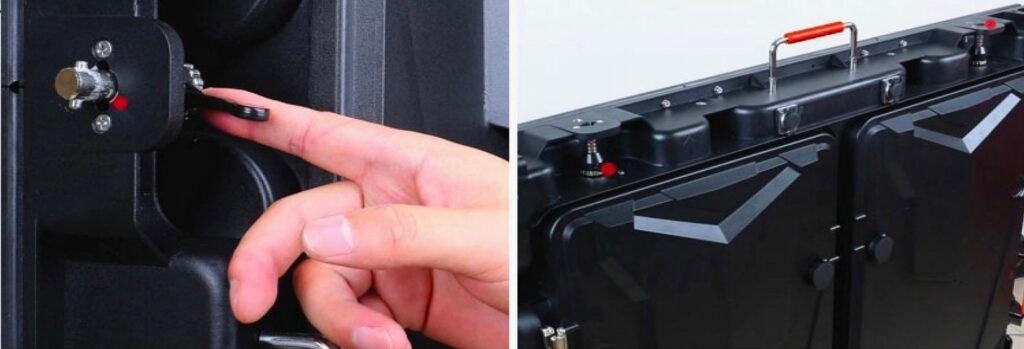

Fast installation
Two easy locks on the top and two on the side. Positioning pin on the top, installed by connector

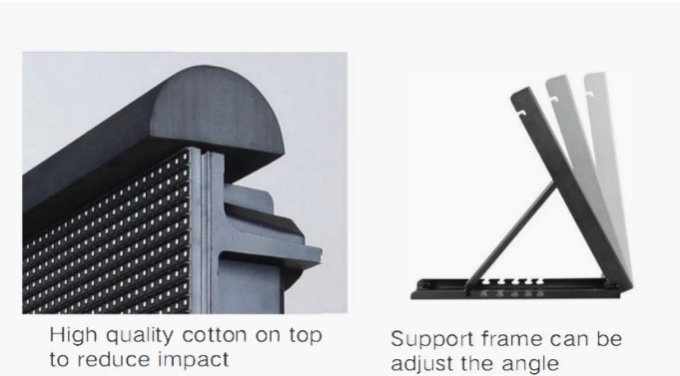

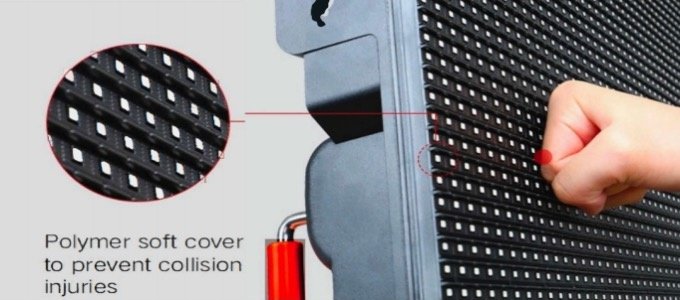

Soft mask and topcover to protect the sportsman
Use for Stadium， it add soft mask and topcover to protect the sportsman.

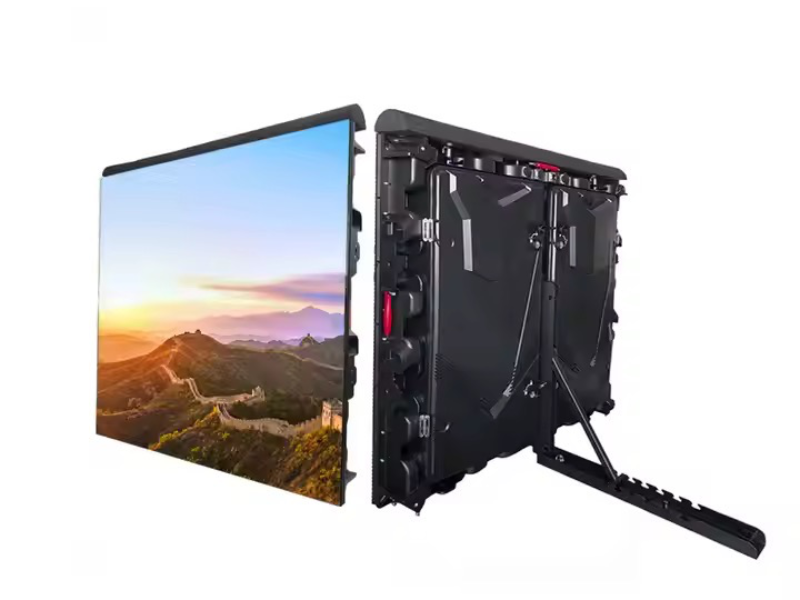

The suppoert frame can be adjust the angle , then get the best view.
Multiple viewing angles
The display can be selected between 60° and 85° to meet the user’s various installation needs
Paramters
| P3.076 | P3.33 | P4 | P5 | P6.67 | P8 | P10 | |
|---|---|---|---|---|---|---|---|
| LED | SMD1921 | SMD3535 | |||||
| Moudle SIze(mm) | 320*160 | ||||||
| Moudle Resolution | 104*52 | 96*48 | 80*40 | 64*32 | 48*24 | 40*20 | 32*16 |
| Cabinet Size(mm) | 960*960 | ||||||
| Cabinet Resolution | 312*312 | 288*288 | 240*240 | 192*192 | 144*144 | 120*120 | 96*96 |
| Density(dot/㎡) | 97,134 | 90,180 | 62,500 | 40,000 | 22,500 | 15,625 | 10,000 |
| Module Quantity | 18 | ||||||
| Weight | 34KG | 32KG | |||||
| Max Power(w/m²) | 1200W | 900W | |||||
| Ave Power(w/m²) | 360W | 300W | |||||
| Maintenace | Front&Rear | ||||||
| Input(V) | 110-220 | ||||||
| Brightness | 5000 | ||||||
| Waterproof | IP65 | ||||||
| Grey Level | 14 | ||||||
| Refresh Frequency | 3840HZ/7680HZ | ||||||
| Operating Temperatrue | -20~60℃ | ||||||
| Operating Humidity | 10%-90% | ||||||
