Rental Curve Series
RC Series:
This is a versatile rental LED display specially designed for both flat and curved installations, adaptable to various stage designs and creative setups，making it ideal for concerts, exhibitions, events, and conferences.
- No curved locks, can be various curved shapes
- Curved display can Hybrid with flat display
- Quick lock system for fast installation and dismantling.
- High refresh rate for stunning live camera performance.

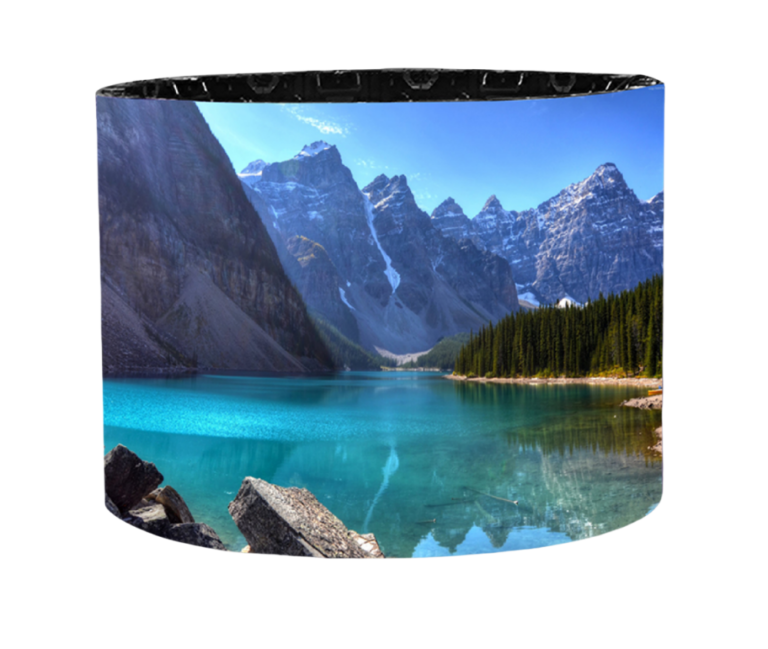

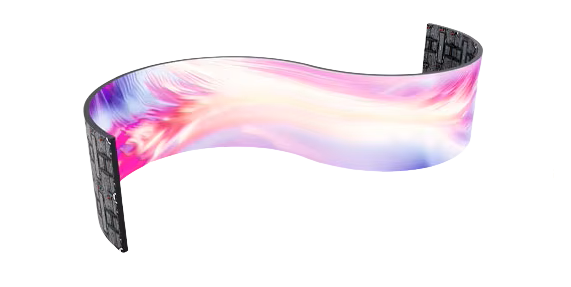

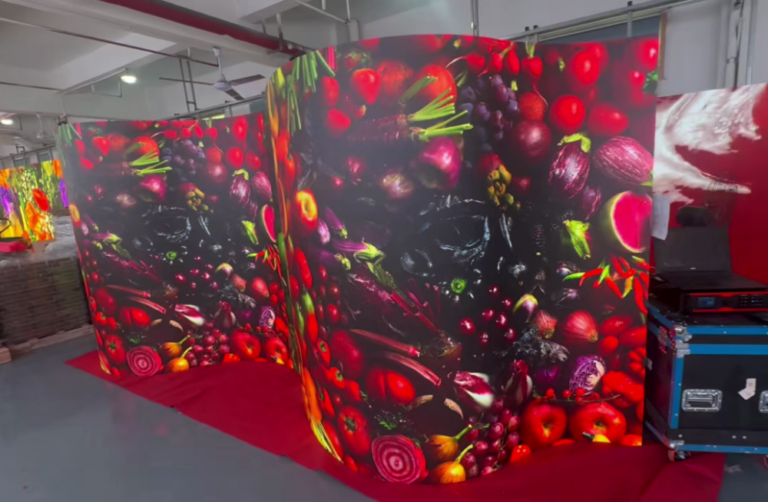

Arbitrary arc
The seamless transition at the joints makes the curved LED display screen, assembled using flexible LED display cabinets, as smooth and flowing as a ribbon.

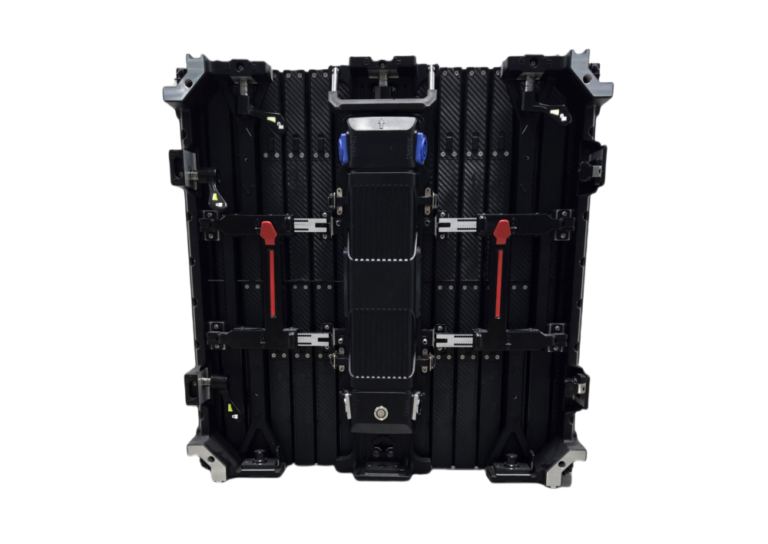

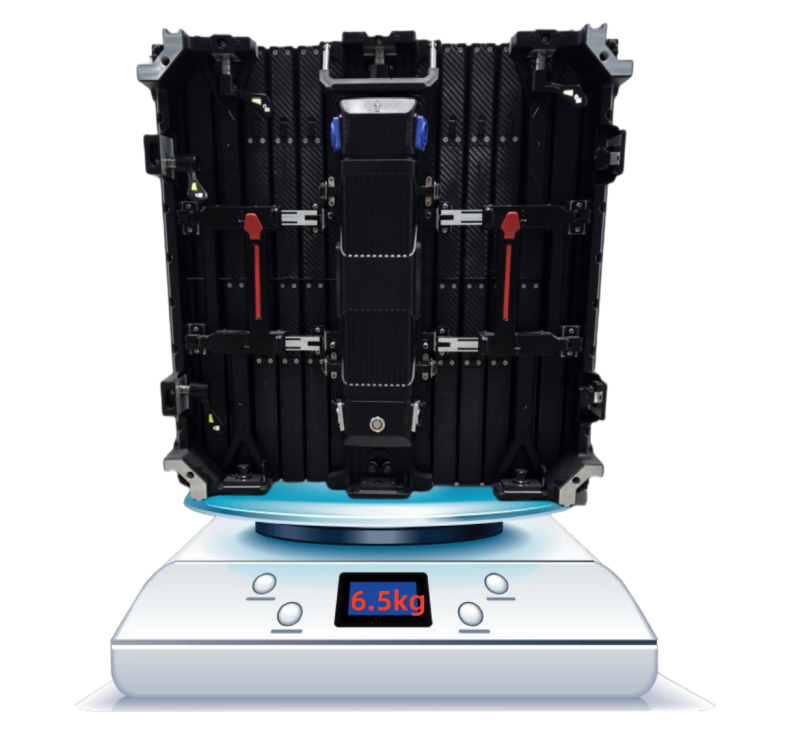

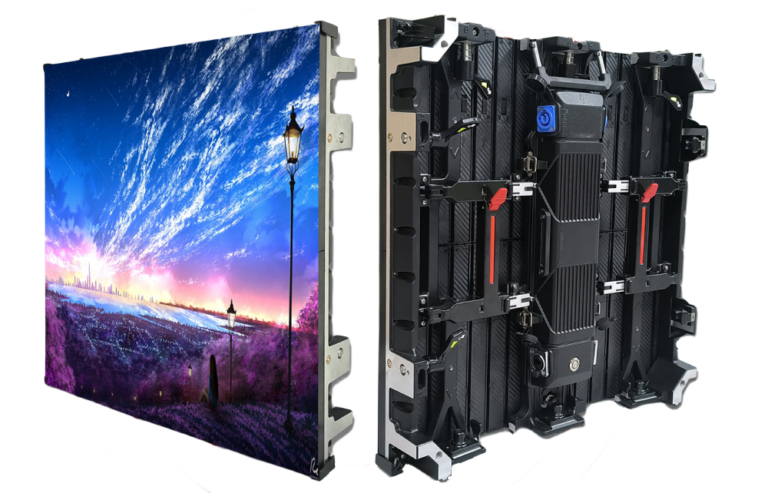

Lightweight cabinet
The cabinet is manufactured using die-cast aluminum technology, which ensures overall strength while minimizing weight. Weighing only 6.5 kg, the LED cabinet is easy to install and transport.

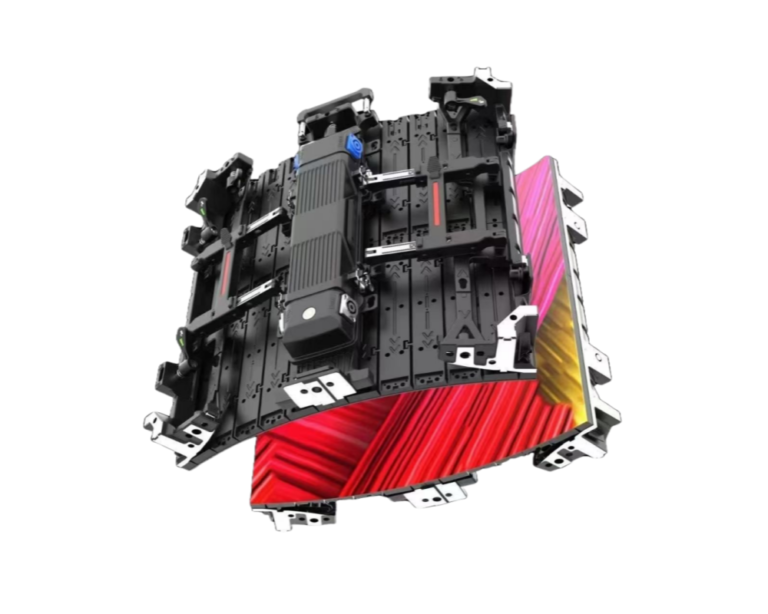

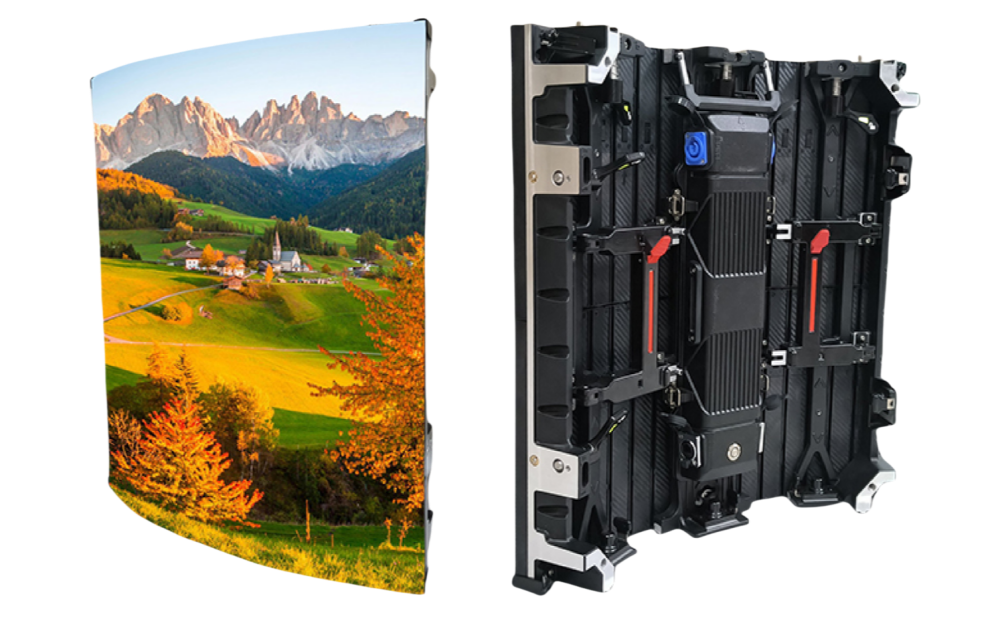

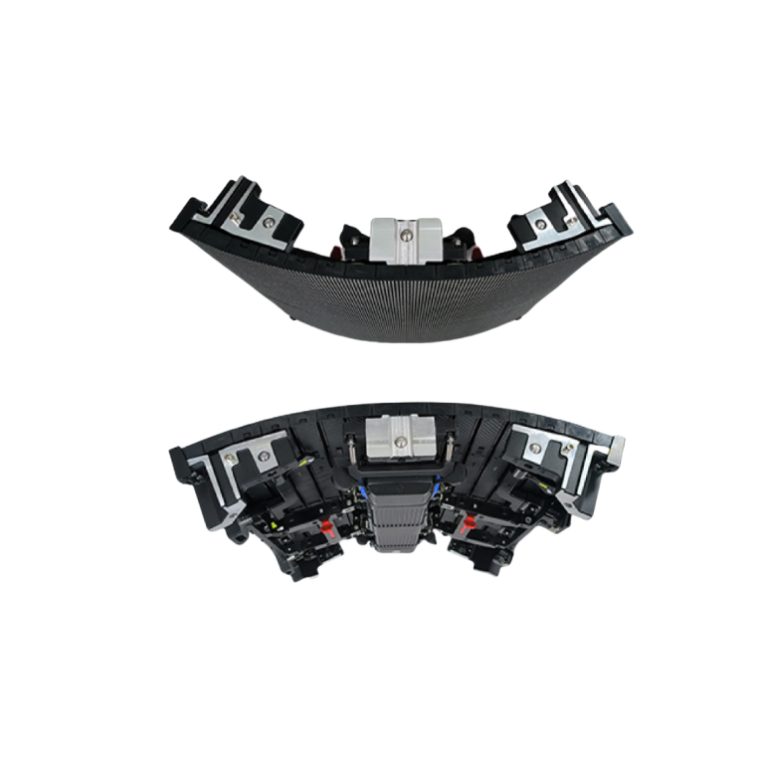

Curved display
Not only can it be used as a flat display, but it can also be used as a curved display. Minimum radius of curvature: 32 cm

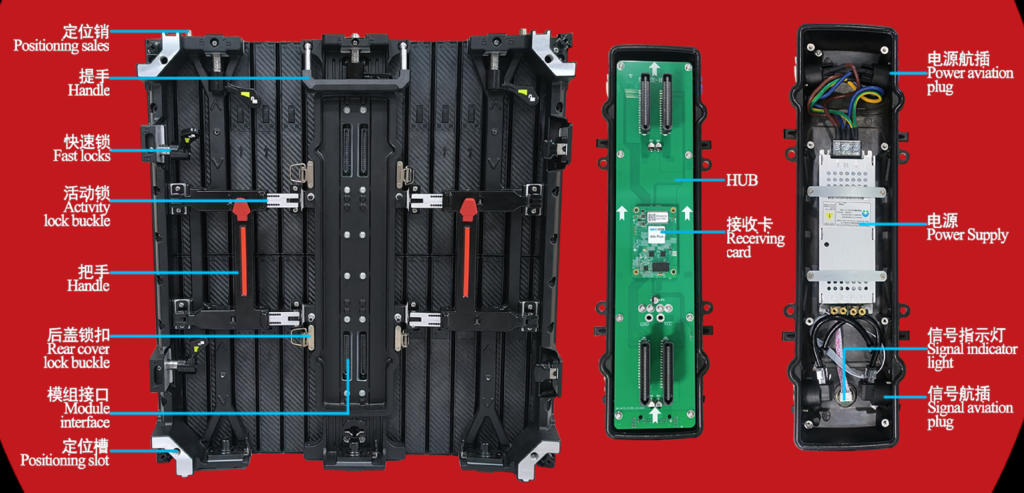

Easy maintenance
The overall modular design, switching power supply, receiving card are integrated in the control box, replacement is very convenient.
Video
Parameters
| P1.95 | P2.6 | P2.97 | P3.91 | P3.91 | |
|---|---|---|---|---|---|
| LED | SMD1515 | SMD2020 | SMD1921 | ||
| Moudle SIze(mm) | 250X250 | ||||
| Moudle Resolution | 128X128 | 96X96 | 84X84 | 64X64 | |
| Cabinet Size(mm) | 500X500 | ||||
| Cabinet Resolution | 256X256 | 192X192 | 168X168 | 128X128 | |
| Density(dot/㎡) | 262,144 | 147,456 | 112,896 | 65,536 | 65,536 |
| Module Quantity | 4 | ||||
| Weight | 6.5KG | ||||
| Max Power(w/m²) | 800W | ||||
| Ave Power(w/m²) | 265W | 265W | 265W | 265W | 265W |
| Maintenace | Front&Rear | ||||
| Input(V) | 100-240 | ||||
| Brightness | 700 | 900 | 800 | 4500 | |
| Waterproof | IP43 | IP65 | |||
| Grey Level | 14 | ||||
| Refresh Frequency | 3840HZ | ||||
| Operating Temperatrue | -20~50℃ | ||||
| Operating Humidity | 5%-95% | ||||
