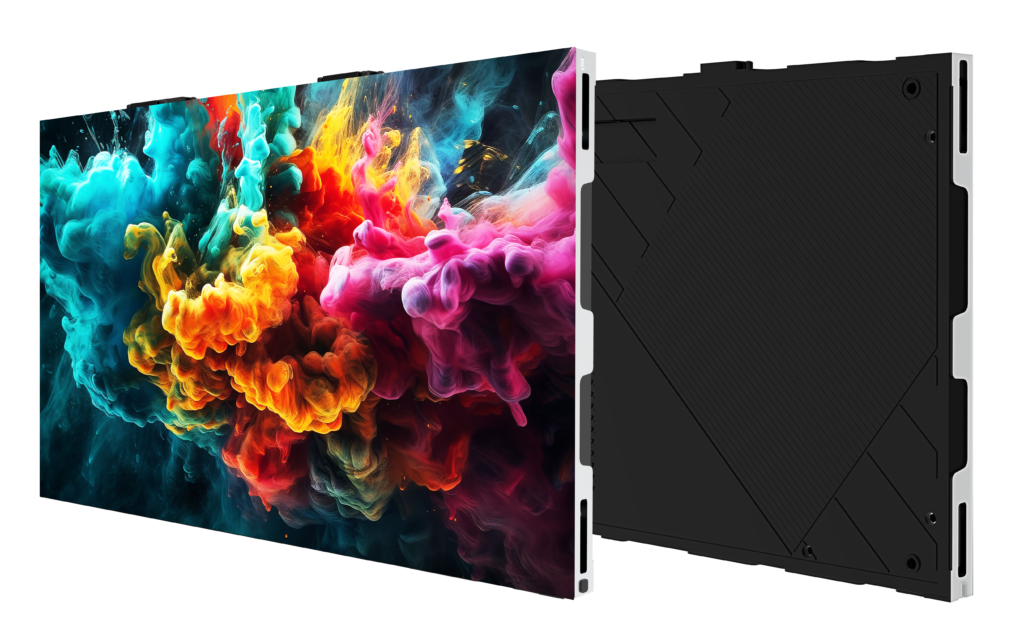

Indoor Commercial Display – UHD Series
Ultra high definition LED Display Series

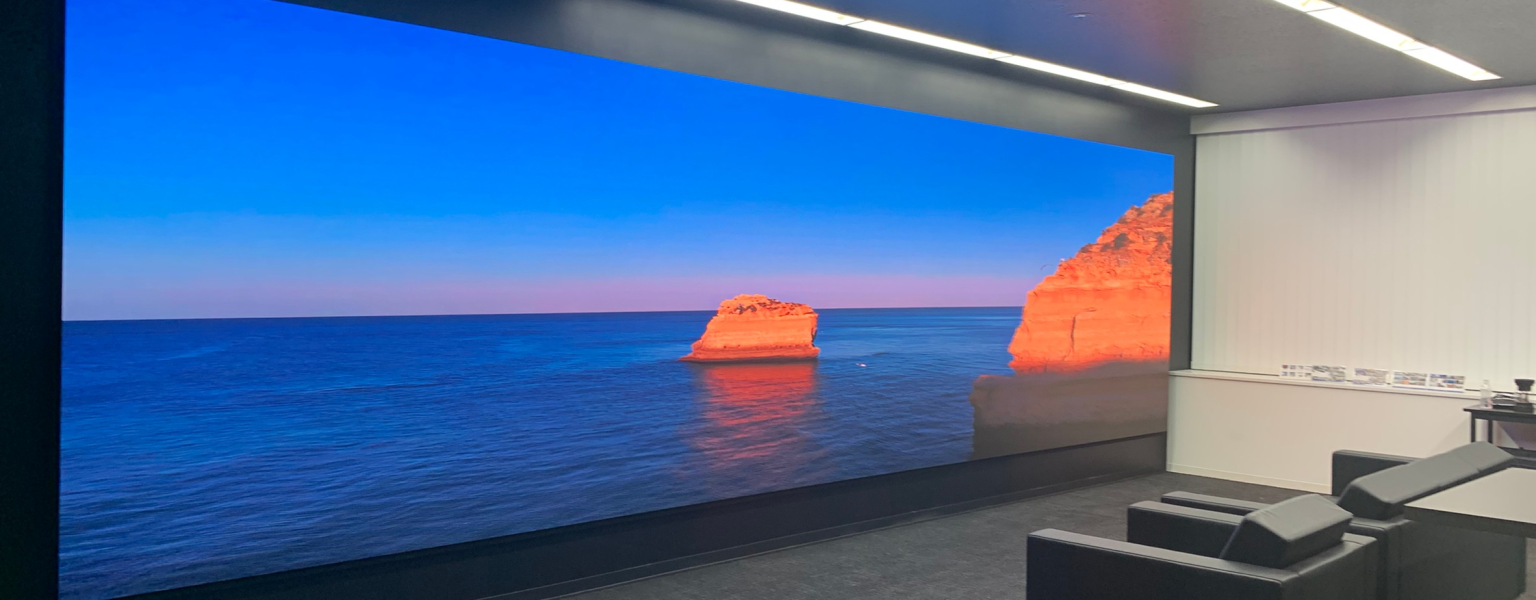

It is perfect for high-end indoor applications. It excels in control rooms, conference halls, command centers, retail stores, and broadcasting studios, delivering seamless visuals and vibrant colors.
⦁Ultra High Definition visuals

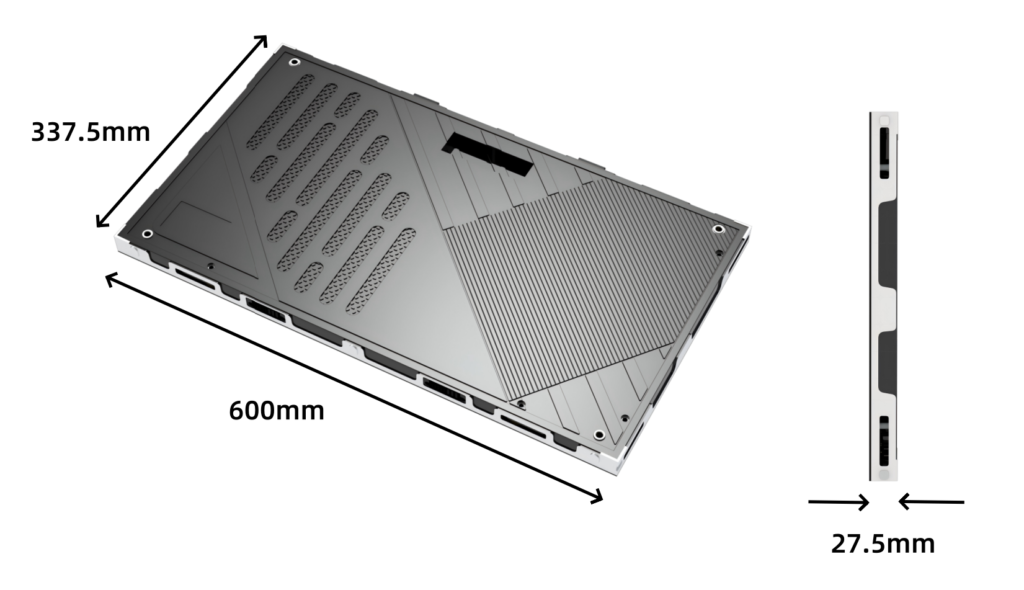

⦁Ultra-thin design，only 27.5mm
⦁Lightweight design
⦁100% Front Service
⦁Seamless & 90º splicing

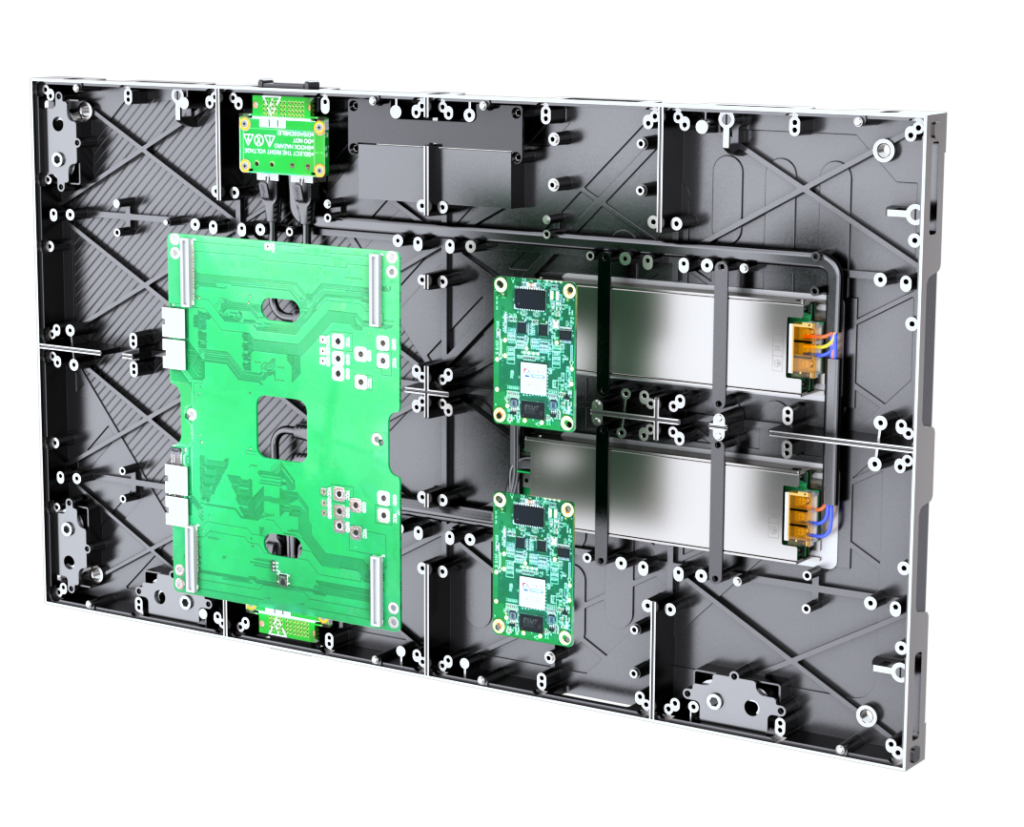

Dual card dual electric
Configurable dual backup version to ensure uninterrupted power supply。 Signal not lost, more stable and reliable。

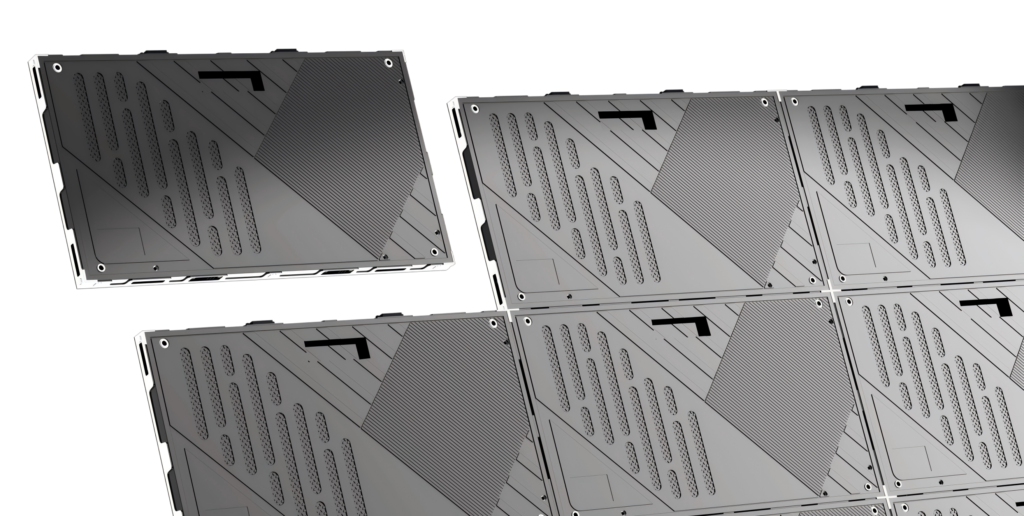

Seamless Splicing

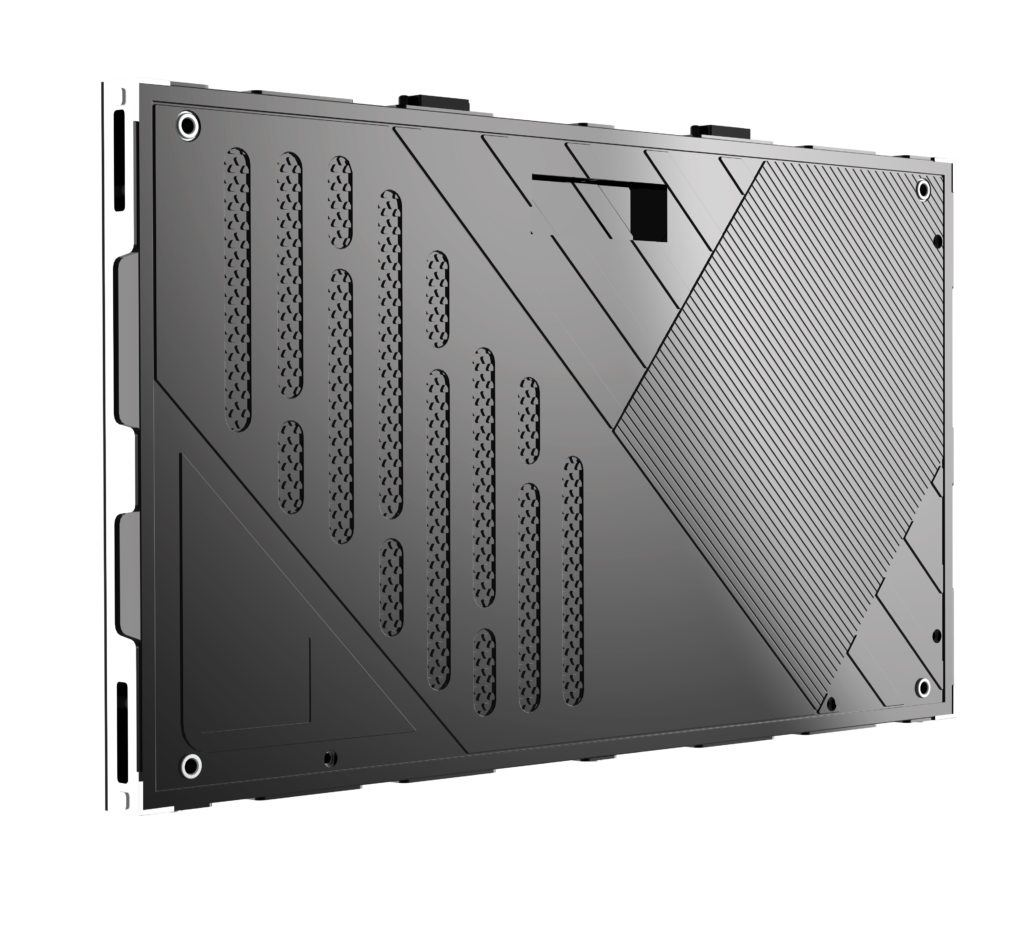

Die-casting Alumium Cabinet sctructure with CNC high-precision processing (Flatness of Cabinet≤0.1mm) Screwless design for faster and more secure installation Super silent fanless design

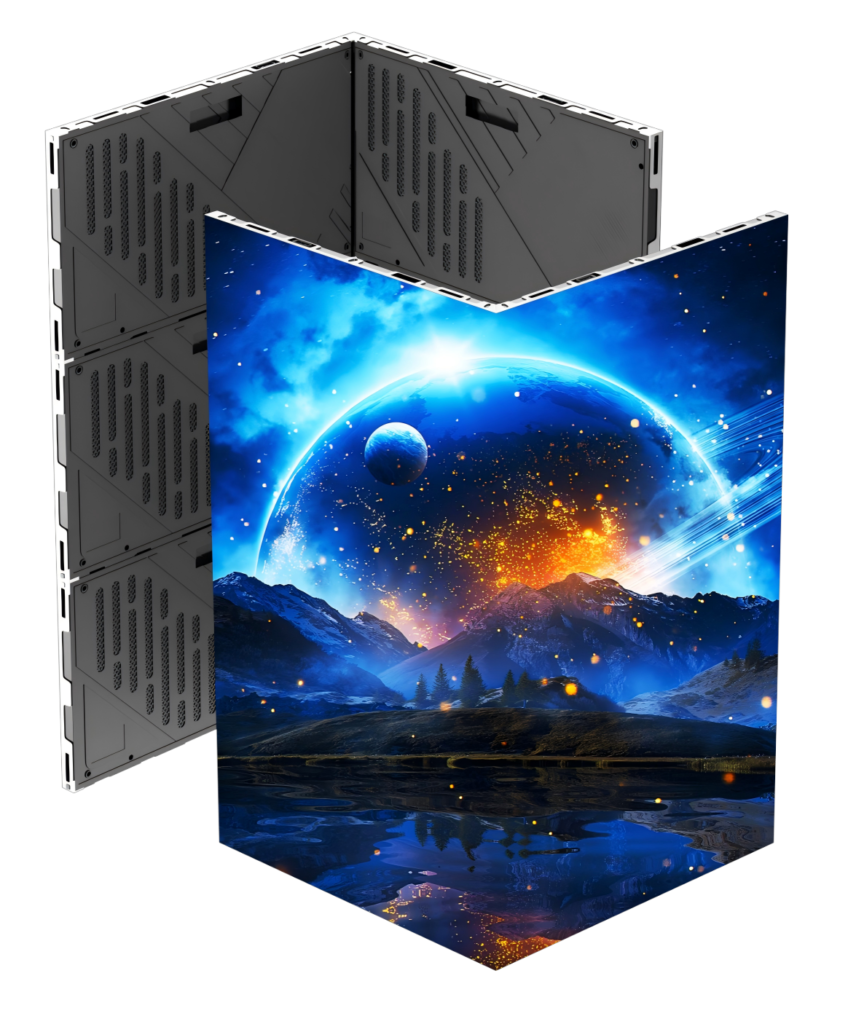

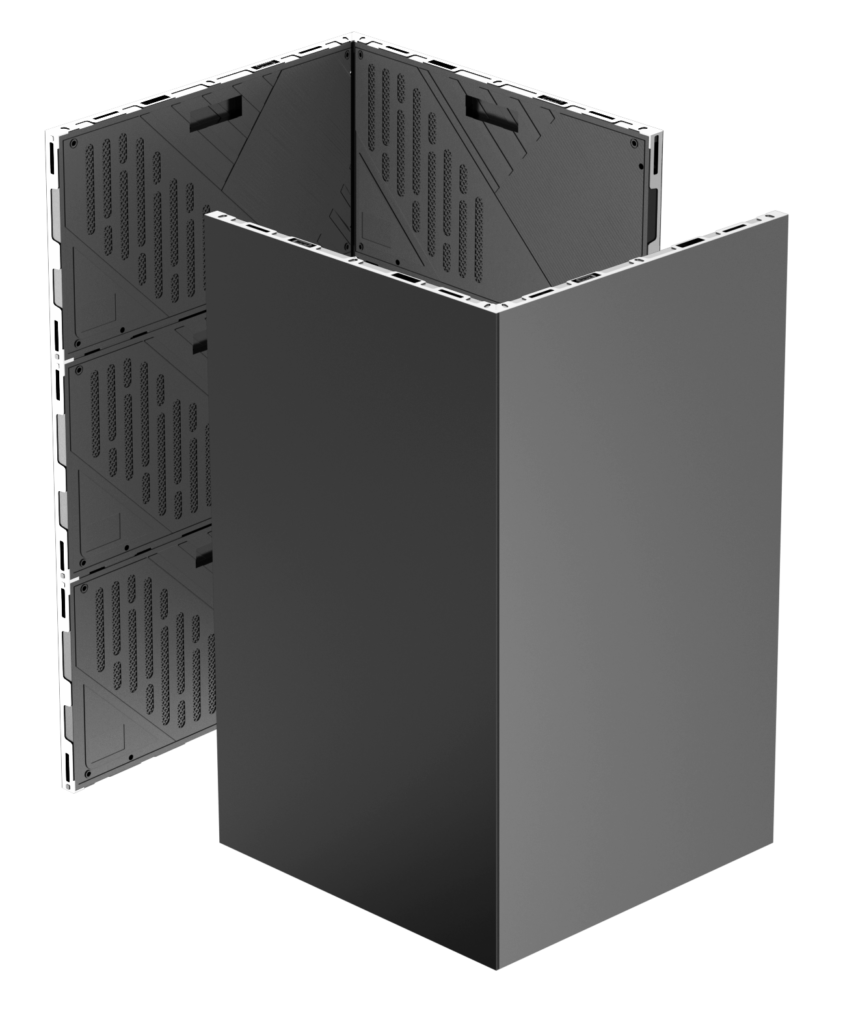

Creative splicing
Supports shapes such as right angles and arcs to meet various creative splicing needs.

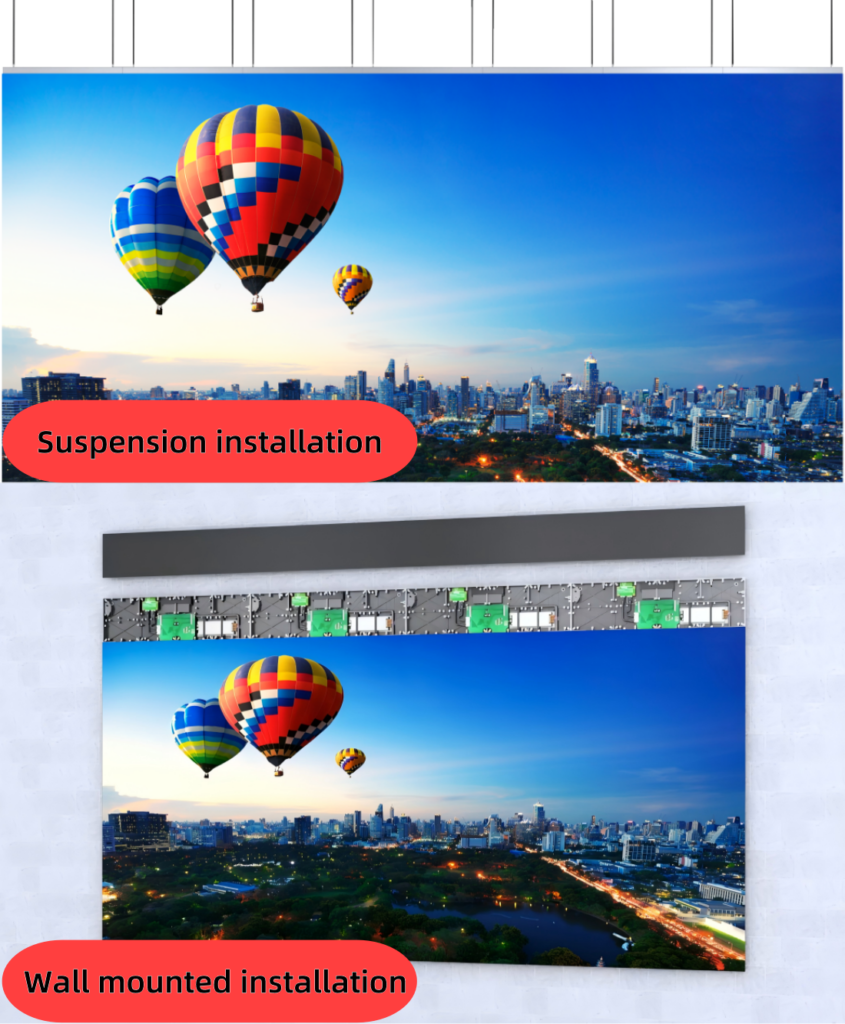

Installation method
Support multiple installation methods such as lifting, wall mounted installation, and embedded installation, suitable for more scenarios.
Parameters
| P1.25 | P1.56 | P1.875 | P2.5 | |
|---|---|---|---|---|
| LED | SMD1010 | SMD1010/1212 | SMD1010/1515 | SMD1515 |
| SIze(mm) | 300X168.75 | 300X168.75 | 300X168.75 | 150X337.5 |
| Resolution | 240X135 | 192X108 | 160X90 | 60X135 |
| Density(dot/㎡) | 640,000 | 409,600 | 284,444 | 160,000 |
| Cabinet Size(mm) | 600X337.5 | 600X337.5 | 600X337.5 | 600X337.5 |
| Resolution | 480X270 | 384X216 | 320X180 | 240X135 |
| Module Quantity | 4 | 4 | 4 | 4 |
| Weight | 4.5KG | 4.5KG | 4.5KG | 4.5KG |
| Max Power(W/m²) | 350W | 350W | 350W | 350W |
| Ave Power(W/m²) | 100W | 100W | 100W | 100W |
| Maintenace | Front | Front | Front | Front |
| Input(V) | 90-264 | 90-264 | 90-264 | 90-264 |
| Brightness | ≥600 | ≥600 | ≥600 | ≥600 |
| Waterproof | IP31 | IP31 | IP31 | IP31 |
| Grey Level | 16 | 16 | 16 | 16 |
| Refresh Frequency | 3840HZ | 3840HZ | 3840HZ | 3840HZ |
| Operating Temperatrue | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ |
| Operating Humidity | 10%~85% | 10%~85% | 10%~85% | 10%~85% |
